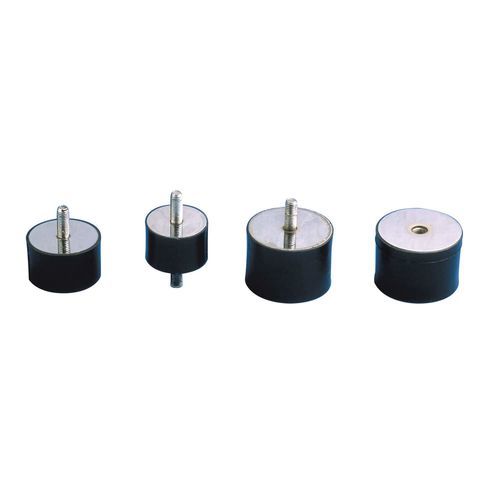

Cylindrical anti-vibration mount RADIAFLEX®

mild steelrubbervibration damper

Description
The RADIAFLEX® cylindrical anti-vibration mount is designed for easy assembly with various fasteners. It comprises plated mild steel metalwork bonded to natural rubber in a cylindrical geometry, providing radial flexibility greater than axial.

Welded fixings (5 styles)

• Single side threaded stud
• Single side threaded hole
• Double threaded stud
• Double threaded hole
• Combination fixing

Advantages

• Simple to fix.
• Cost-effective solution.
• Extensive range:
  • 15 stud diameters
  • Multiple heights per diameter
  • 6 fixing methods

Design / Behaviour
The RADIAFLEX® range follows European thread standards where applicable. The end-stop version can include a threaded hole in addition to the threaded stud.

Specifications
The design yields these basic characteristics:

• Radial elasticity greater than axial elasticity.
• The rubber is loaded in:
  • Compression (axial)
  • Shear (radial)
  • Compression–shear depending on the fixing method

Characteristics / technical specifications

• Configuration: cylindrical
• Material: mild steel, rubber
• Other characteristics: threaded
• Static load: Max.: 1,110 daN; Min.: 8 daN
• Diameter: Max.: 100 mm (3.937 in); Min.: 12.5 mm (0.492 in)
