Rectangular anti-vibration mount TRAXIFLEX®

chloroprenegalvanised steel

Description

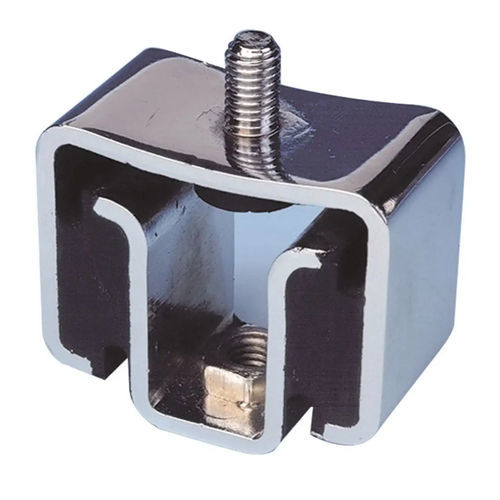

The TRAXIFLEX® rectangular anti-vibration hanger is designed for ceiling suspensions and other traction applications. It comprises two galvanized metallic U-frames joined by two bonded chloroprene rubber blocks. Available in male/female and female/female versions to suit different installation layouts.

Advantages

• Cost-effective solution to reduce structure-borne vibration and associated noise.
• Multiple fixing options for adaptable installation.
• High resistance to atmospheric exposure: galvanized armatures and chloroprene elastomer.
• Upper metallic part is shaped to simplify orientation during fitting.
• Two elastomer hardnesses available to match mounting stiffness to load.
• Filters vibration and attenuates resulting airborne noise.
• Allows movement due to thermal expansion.

Specifications

• Rubber operates in compression-shear.
• Same deflection under nominal load across types.
• Safety backup system in case of elastomer failure.

Technical characteristics

• Configuration: rectangular
• Materials: galvanized metal, rubber (chloroprene elastomer)
• Static load range: Min.: 4 daN – Max.: 136 daN
