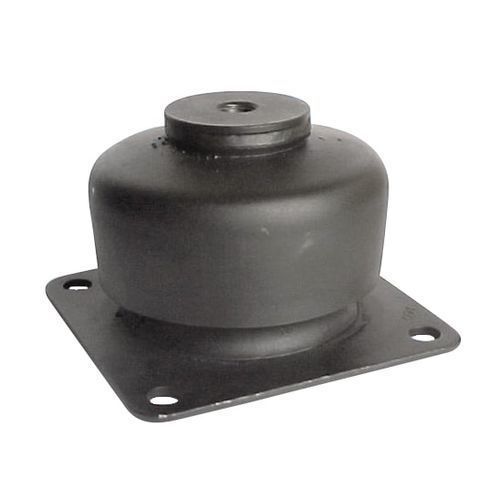

Round anti-vibration mount S.C.P.

rubberfor machinesvibration damper

Description
Round anti-vibration mount designed for stationary equipment. Constructed in rubber and supplied with a protective cover, it reduces transmission of vibrations to fixed machinery and supports static loads within the specified range.

Main features

• Configuration: round
• Material: rubber
• Application: stationary equipment
• Protective cover included
• Product family / identifier: S.C.P.

Dimensions and loads

• Static load: Min.: 70 daN; Max.: 800 daN
• Diameter options: 74 mm, 92 mm, 124 mm (2.913 in, 3.622 in, 4.882 in)

Technical specifications

• Configuration: round
• Material: rubber
• Static load (min): 70 daN
• Static load (max): 800 daN
• Diameter: 74 mm; 92 mm; 124 mm (2.913 in; 3.622 in; 4.882 in)
• Intended use: stationary equipment; includes protective cover
