Conical anti-vibration mount 90520

rubberfor generatorsfor heavy-duty applications

Product description

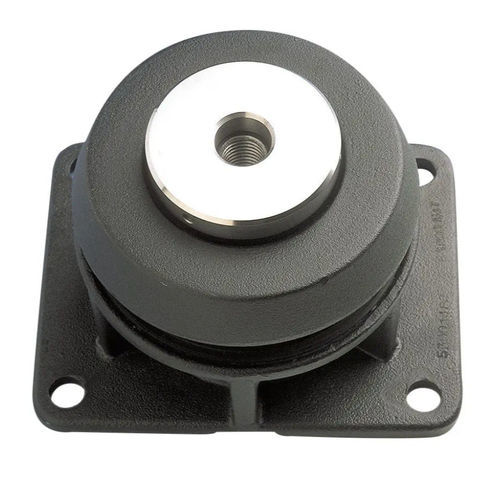

Anti-vibration mount for specific heavy duty engines. This engine mount is made of one conical elastomeric element enclosed in a cast iron assembly. A built-in adjustable stop limits the vertical and lateral displacement during shock. This mount is available in four different alternatives depending on the type of upper fixing needed. It can be supplied with or without levelling system and with a threaded hole or a threaded stud.

Advantages

• Improved vibration and sound comfort
• Engine support operating temperature from -10°C to +70°C
• Two versions available
• Silentbloc engine ideal for heavy-duty engines

Applications & general specifications
This mount has been designed to suspend fixed or mobile generators which require a high level of vibration isolation and shock protection. The load per mount varies from 600 kg to 2300 kg. This load range is covered by 5 different variants (12 to 16) clearly identified by a coloured marking.

Available alternatives (upper fixing)

• 905201: No levelling system - M24 x 3.00 threaded hole
• 905202: Built-in levelling system - M24 x 3.00 threaded hole
• 905203: No levelling system - M24 x 3.00 threaded stud
• 905206: Built-in levelling system - M24 x 3.00 threaded stud

Technical specifications

• Configuration: conical
• Material: rubber
• Applications: for engines
• Static load: Max.: 2,300 daN; Min.: 600 daN
• Diameter: 96 mm (3.78 in)
• Load per mount (stated in description): from 600 kg to 2300 kg
