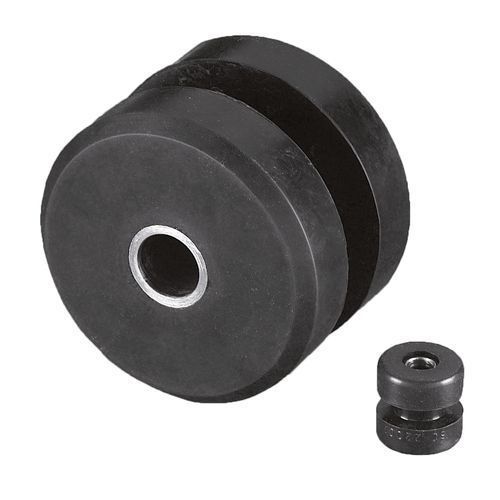

Cylindrical anti-vibration mount 22000

chloroprenerubberfor mobile devices

Description
Cylindrical antivibration mount model 22000 designed for mobile applications. It consists of two elastomer parts bonded to a central reinforced cylindrical tube. Elastomer: chloroprene, oil-resistant. The mount operates in compression and tension and supports axial and radial loads. Available in five stiffness grades to cover axial capacities from 15 to 2100 kg and radial capacities up to 650 kg.

Advantages

• Effective isolation against structure-borne noise
• Chloroprene elastomer resistant to oils
• Compact, simple design for economical installation
• Easy to fix and assemble
• Five sizes for axial load capacity from 15 to 2100 kg and radial load up to 650 kg
• Anti-rebound effect when assembled with a washer

Specifications

• Elastomer element resistant to oils, supporting axial and radial loading
• Axial to radial stiffness ratio: 1:1
• Absorbs vibrations and reduces noise in all directions

Technical characteristics

• Configuration: cylindrical
• Material: rubber (elastomer: chloroprene)
• Applications: mobile equipment, construction machinery
• Range: five different stiffness grades
• Static load: Max.: 2,072 daN; Min.: 9 daN
• Diameter options: 33.2 mm, 47.7 mm, 64.8 mm, 88.9 mm, 123.9 mm (1.307 in, 1.878 in, 2.551 in, 3.5 in, 4.878 in)
• Design: two elastomer parts bonded to a central reinforced cylindrical tube
• Function: supports axial and radial loads; works in compression and tension; provides anti-rebound when assembled with a washer
