Round anti-vibration mount S.T.C.

mild steelrubberfor mobile devices

Description

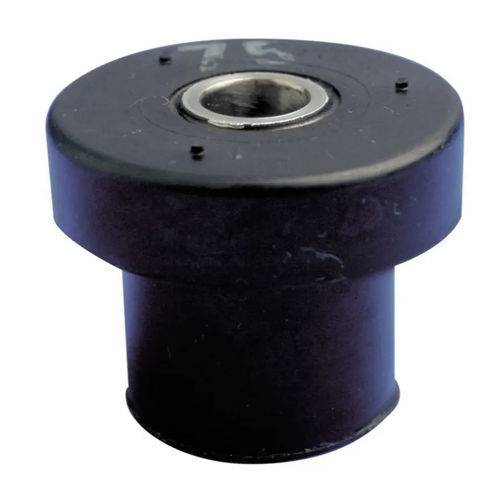

The S.T.C. mount consists of a bonded rubber ring on a central inner tube. The inner tube is made of mild steel; the elastomer is a bonded rubber ring with a fixing collar below. The design is a compression-type isolator providing anti‑rebound behaviour and can be used as a safety mounting for mobile or vibrating equipment.

Characteristics

• Configuration: round
• Material: mild steel inner tube, bonded rubber elastomer
• Applications: for mobile devices and vibrating equipment
• Other: ring with fixing collar
• Static load: Min.: 8 daN; Max.: 1,000 daN
• Diameter: Min.: 27.7 mm (1.091 in); Max.: 95 mm (3.74 in)

Advantages / Specifications

• Easy and economical to fix
• Wide load range
• Rubber designed to work in compression
• Anti‑rebound behaviour
• Can serve as a safety mounting

Technical specifications

• Configuration: round compression mount
• Inner tube material: mild steel
• Elastomer: bonded rubber ring with collar for fixing
• Intended use / applications: for mobile devices and vibrating equipment
• Static load range: 8 daN – 1,000 daN
• Diameter range: 27.7 mm (1.091 in) – 95 mm (3.74 in)
• Key functional properties: rubber works in compression; anti‑rebound; suitable as safety mounting
