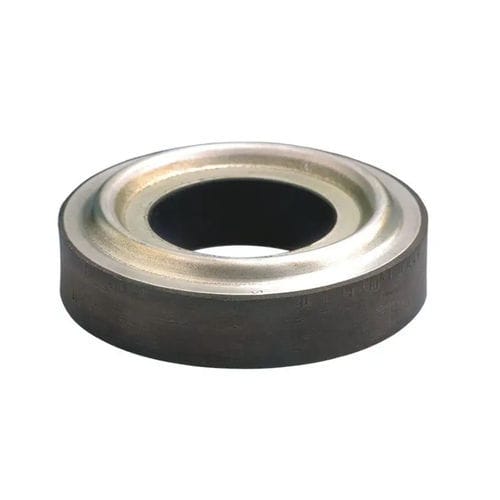

Round anti-vibration mount BATRA®

rubbermetallicfor pipework

Description
The BATRA® round anti-vibration mount is a stackable rubber‑metal ring designed to isolate vibration and absorb shocks in pipework supports. It comprises an elastomeric rubber ring bonded to two metallic washers — one with a circular groove and the other with a mating circular ridge — allowing secure stacking and controlled vertical compliance.

Key functional points

• Behaviour identical to that of a metallic spring plus damper
• Robust under shock; reduces risk of suspension collapse
• Adjustable stiffness by stacking multiple BATRA® rings
• Transverse creep limited by the two bonded metallic armatures

Features

• Configuration: round
• Material: metallic washers and bonded rubber
• Applications: pipework vibration isolation and support
• Other: ring-type anti-vibration element

Technical characteristics / specifications

• Static load: Max.: 13,500 daN — Min.: 50 daN
• Diameter: Max.: 250 mm (9.843 in) — Min.: 50 mm (1.969 in)
