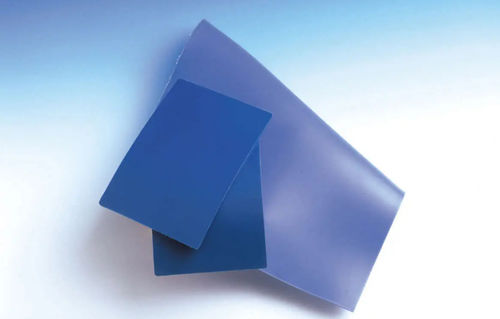

Silicone rubber sheet E3PEPL

for acoustic insulation

Description
Cuttable plates in damped silicone rubber (VHDS elastomer) designed for the production of vibration-insulating elements. Square sheets 300 x 300 mm, available in thicknesses from 2 to 10 mm; standard example thickness: 6 mm.

Advantages
The anti-vibration cutting plate proposed by Hutchinson Paulstra allows the manufacture of various anti-vibration elements. Made from VHDS damped silicone, the 6 mm sheet can be cut to produce grommets, washers and seals effective for vibro-acoustic insulation of industrial machines.

Applications / Specifications
Ideal for cutting vibratory supports such as washers or grommets. Supplied in 300 mm square format for thicknesses from 2 to 10 mm. The VHDS plate is easily cut to obtain the insulation element you need in the required dimensions.

Technical specifications

• Material: silicone
• Elastomer type: VHDS (damped silicone rubber)
• Dimensions: 300 x 300 mm (square)
• Thickness: 2 mm – 10 mm (standard example: 6 mm)
• Shape: square
• Use: cuttable to produce grommets, washers and seals for vibro-acoustic insulation of industrial machines
