Square anti-vibration mount EVIDGOM®

metallicrubberelastomer

OverviewFlexible support for long travel, efficient mitigation. The EVIDGOM® mount is formed from two thick conical membranes, joined at their bases to create a highly elastic mounting. There are three variations:

• All rubber EVIDGOM®
• EVIDGOM® with bonded fixing

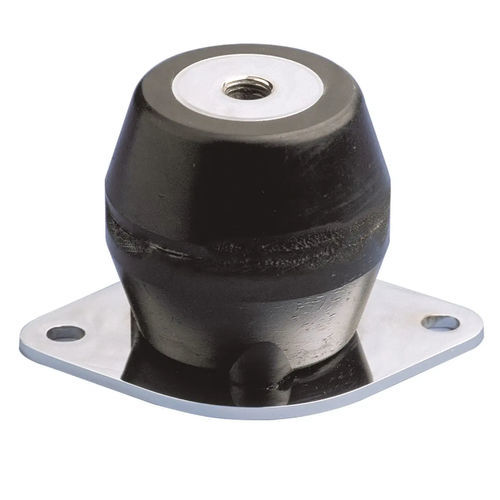

• EVIDGOM® with a diamond or square mounting plate (fixing plate supplied as a separate kit)

Advantages

• As the load/deflection curve has a point of inflection, a suspension may be designed to have a sub-tangent greater than the static deflection
• The elastomer used provides intrinsic damping with a corresponding ability to absorb energy which gives appreciable advantages over metallic springs

Design characteristics

• A very high axial elasticity
• Very low natural frequency (a few Hertz)
• Progressive buffer against shocks or accidental overload

Caractéristiques / spécifications techniques

• Configuration: square
• Material: metallic, rubber, elastomer
• Other characteristics: low-frequency
• Static load: Max.: 14,000 daN; Min.: 0 daN
• Diameter: Max.: 350 mm (13.78 in); Min.: 34 mm (1.339 in)
