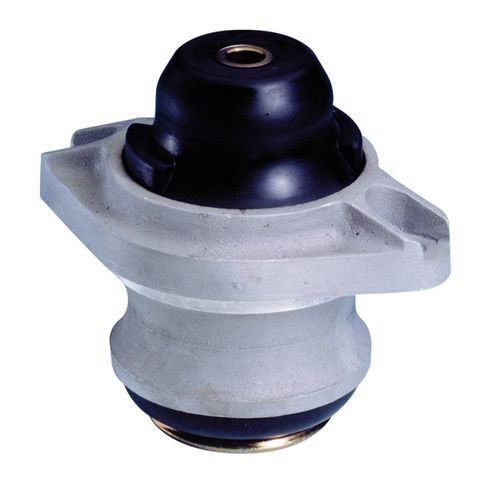

Round anti-vibration mount TRIAXDYN

elastomerrubberfor heavy loads

Overview
Specific anti-vibration mount for cabins and vehicle engines. The TRIAXDYN comprises two elastomers assembled into a casting and pre-loaded. It is engineered to provide large axial deflection, different stiffness in three axes and integrated stops to limit movement in all directions. The mount body can be adapted to alternative interface dimensions while preserving the internal elastomer interface.

Design features

• Two elastomers assembled into a casting and pre-loaded
• Large axial deflection
• Different stiffness in three axes
• Built-in stops to limit movement in all directions

Advantages

• Effective vibration isolation for cabs and engines
• Reduced transmitted shock and noise
• Suitable for heavy loads and mobile applications
• Versatile: can be used as engine mount, cab mount or for industrial equipment

Specifications
Designed to isolate engines or cabs in fixed or mobile installations with a high level of isolation and shock protection. Compact, fail-safe suspension for loads from 150 to 280 kg.

Applications

• Engine mounting
• Cab mounting
• Equipment mounting

Technical specifications

• Configuration: round
• Material: rubber, elastomer
• Diameter: 94 mm (3.701 in)
• Load capacity (suspension): 150 to 280 kg
• Design: two elastomers assembled into a casting and pre-loaded
• Key features: large axial deflection; different stiffness in three axes; built-in stops to limit movement
• Intended use: engine, cab or equipment mounting
• Manufacturer: PAULSTRA
• Commercial name / model: TRIAXDYN
