Conical anti-vibration mount GB 530

elastomersteelfor maritime applications

Product overview

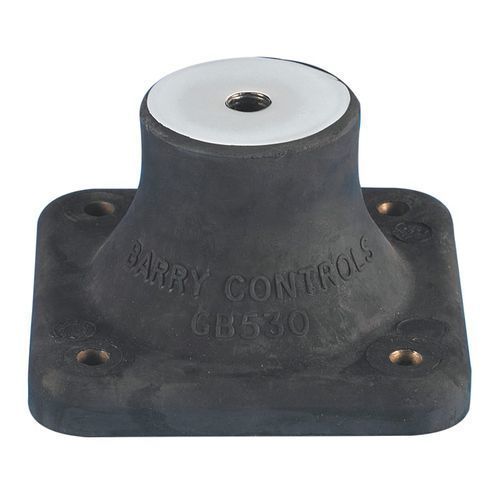

Conical antivibration and shock mount designed for maritime use and compliant with UK naval standards. The GB 530 series consists of a single elastomer element bonded to a base plate and a threaded steel core. A non-magnetic version is available for applications requiring reduced magnetic signature.

Advantages

• High deflection capacity under shock due to conical geometry
• Extended in-service life under marine conditions
• Low natural axial frequency (~5 Hz) for effective isolation
• Low amplification at resonance (example: 8 at 10)

Marine support functions

• Maintain suspended mass in absence of shock while providing vibratory and acoustic insulation
• Limit transmitted force and displacement to acceptable levels during shocks
• Enable the suspended mass to return to its initial position after shocks

Technical characteristics / specifications

• Denomination: GB 530 series
• Configuration: conical
• Material: steel core, elastomer element (non-magnetic option available)
• Applications: maritime use (naval, UK standards)
• Characteristic: low-frequency isolation
• Static load: Min. 7.5 daN — Max. 600 daN
• Diameter: 151 mm (5.945 in)
• Natural frequency (axial): ~5 Hz
• Low amplification at resonance: example value 8 at 10
