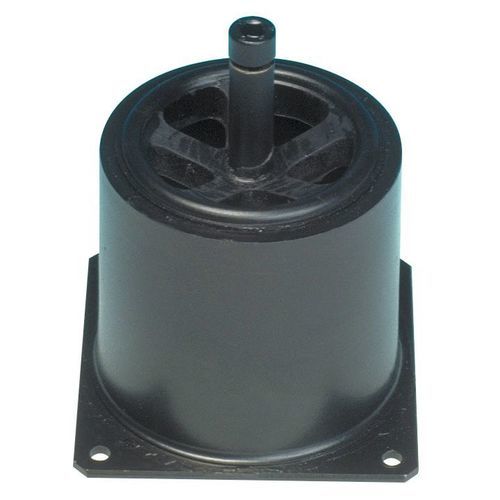

Round anti-vibration mount VIB HD 50

plasticfor feetvibration damper

Overview
The permitted deflection (40–50 mm) of the suspended mass relative to the mounting base reduces transmitted reaction during shock events. This mount provides vibration isolation for continuous vibratory loads but is not intended for effective protection against high-energy shocks.

Product description
Natural frequency (vertical and lateral) under typical load: 5–8 Hz. Maximum deflection under load: vertical ±50 mm; lateral ±45 mm. Rest height H; under nominal load height = H − 6 mm (deflection under nominal load = 6 mm). Maximum forces correspond to approximately 10 times the static load depending on conditions.

Characteristics

• Applications: machine mounting and vibration isolation
• Material: plastic
• Type: anti-vibration / positioning mount
• Diameter range: min. 105 mm (4 in); max. 135 mm (5 in)

Technical specifications

• Permitted deflection of suspended mass vs mounting base: 40–50 mm
• Natural frequency (vertical and lateral) under load: 5–8 Hz
• Maximum deflection under load: vertical ±50 mm; lateral ±45 mm
• Height: H at rest; H − 6 mm under nominal load (deflection under load = 6 mm)
• Maximum transient forces: up to 10× the static load (approx., application dependent)
