- Flange anti-vibration mount
- Hutchinson Precision Sealing Systems

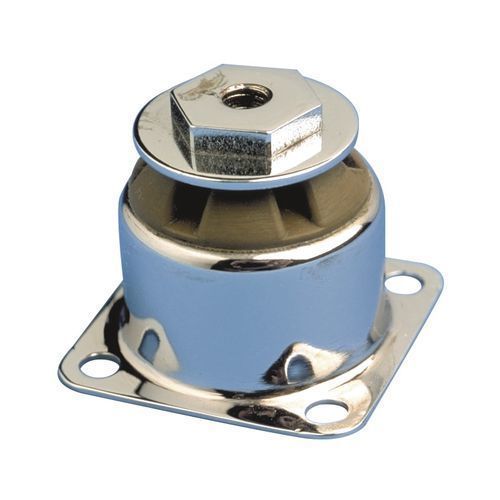

Flange anti-vibration mount E1E1xSEsiliconesilicone rubberstainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- flange
- Material
- silicone rubber, stainless steel, silicone
- Applications
- for aeronautical applications, for automotive applications, for shafts
- Other characteristics
- shock absorbing, vibration damper, shock-absorber
- Static load
Max.: 160 N
Min.: 16 N
Description
Description
Shock and vibration mount in damped silicone, designed for both tension and compression applications. Uses VHDS elastomer that supports loads in compression and traction. Pedestal, washer and shaft are manufactured in 18/8 stainless steel for corrosion resistance. The E1E1xSE series is intended for automotive and aeronautical installations requiring visco-elastic damping.
Main features
Applications
Technical specifications
Shock and vibration mount in damped silicone, designed for both tension and compression applications. Uses VHDS elastomer that supports loads in compression and traction. Pedestal, washer and shaft are manufactured in 18/8 stainless steel for corrosion resistance. The E1E1xSE series is intended for automotive and aeronautical installations requiring visco-elastic damping.
Main features
- Vibration isolation
- Visco-elastic silicone elastomer (VHDS)
- Suitable for both tension and compression loadings
- Corrosion-resistant 18/8 stainless steel hardware
Applications
- Automotive industry
- Aeronautical components and equipment
- Mounting of washers, shafts and pedestals
Technical specifications
- Function: shock and vibration damping
- Technology: visco-elastic
- Materials: silicone, VHDS elastomer, 18/8 stainless steel
- VHDS elastomer: supports loads under compression and traction
- Pedestal, washer and shaft: 18/8 stainless steel
- Load capacity Min.: 1.6 daN
- Load capacity Max.: 16 daN
