Round anti-vibration mount POLYFLEXmetalrubberfor pump
Add to favorites
Compare this product
Characteristics
- Configuration
- round
- Material
- rubber, metal
- Applications
- for pump, for compressors, for motors, for generators, for air conditioning, for blowers, for transformers, for cabinets
- Other characteristics
- vibration damper
- Static load
Max.: 800 N
Min.: 70 N
- Diameter
30 mm, 50 mm, 55 mm, 60 mm, 75 mm
(1.181 in, 1.969 in, 2.165 in, 2.362 in, 2.953 in)
Description
Description

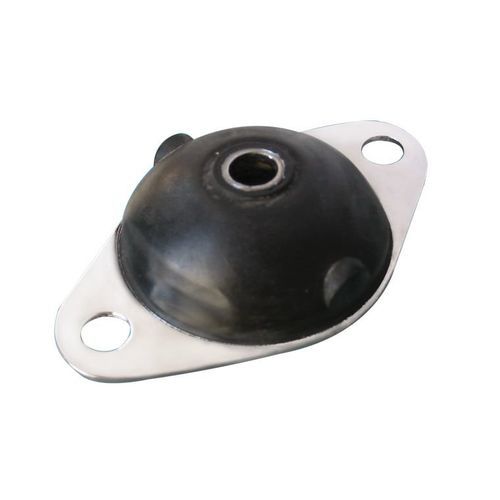

The Polyflex vibratory support provides a compact, low-profile solution for vibration damping of fixed equipment under light loads. It features an oval metal base with a small rubber cone and an upper attachment formed by a rubber-moulded tube.
Applications
Advantages
Caractéristiques / spécifications techniques
The Polyflex vibratory support provides a compact, low-profile solution for vibration damping of fixed equipment under light loads. It features an oval metal base with a small rubber cone and an upper attachment formed by a rubber-moulded tube.
Applications
- Fans
- Air conditioners
- Pumps
- Compressors
- Generators
- Small motors
- Transformers
- Electrical cabinets
Advantages
- Reduced height
- Ease of assembly
- Equifrequency support
Caractéristiques / spécifications techniques
- Configuration: round
- Material: metal, rubber
- Static load - Max.: 80 daN
- Static load - Min.: 7 daN
- Diameter: 30 mm (1.181 in), 50 mm (1.969 in), 55 mm (2.165 in), 60 mm (2.362 in), 75 mm (2.953 in)
