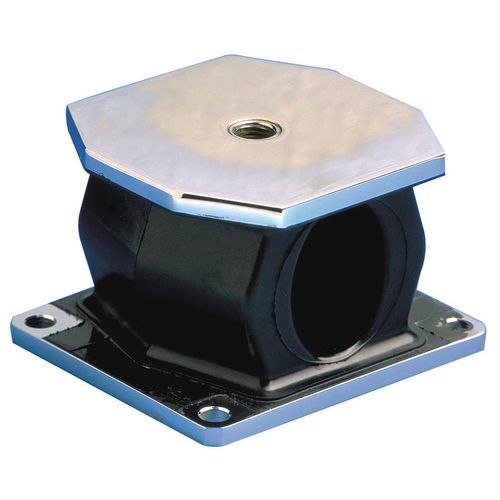

Elastomer anti-vibration mount E1C2321

rubbersteelfor machinery

Product description
The E1C2321 / E1T2105 vibration dampers are special packaging components featuring a flexible visco-elastic elastomer element bonded between two steel mounting plates. These multi-directional dampers provide significant deflection to protect equipment transported in containers from drops and transport shocks. They can also be used to suspend equipment requiring protection from shocks and vibrations caused by explosions or seismic events.

Key features

• Function: vibration and shock damping
• Design: multi-directional, flexible elastomer element
• Construction: elastomer bonded to two steel mounting plates
• Technology: visco-elastic damping
• Load capacity: 1 to 400 daN

Technical specifications

• Function: vibration, shock
• Technology: visco-elastic
• Materials: rubber/elastomer, steel
• Other characteristics: flexible, multi-directional
• Load capacity (max): 400 daN
• Load capacity (min): 1 daN

Typical applications

• Protection of equipment during transport in containers (including aeronautical components)
• Suspension of machinery and sensitive equipment
• Protection against shocks from drops, explosions or earthquakes

Installation and handling

• Mount between equipment and mounting surface using the steel plates provided
• Verify load range and alignment before installation
• Refer to the manufacturer's installation instructions and datasheet for torque and fastening recommendations
