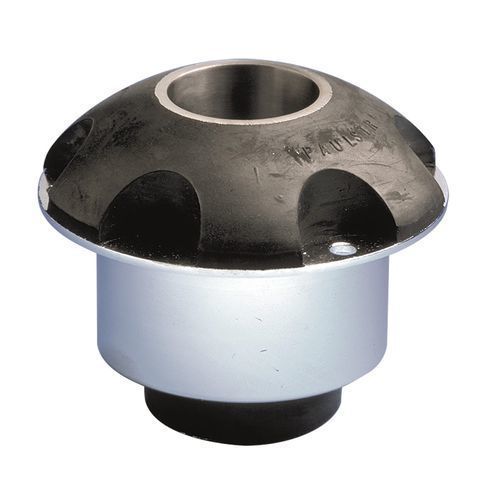

Flange anti-vibration mount S.C.

metalrubberfor mobile devices

Overview
The S.C. series flange anti-vibration mount isolates vibration between an inner tube and an outer housing using an annular bonded rubber element. The outer housing includes a mounting flange available in four variants, making the mount suitable for a wide range of industrial and mobile applications.

Advantages

• Extensive range: 3 rubber hardness grades across 20 standard types to optimise isolation for load and excitation frequency.
• Designed for both mobile and stationary installations with full-width range coverage.

Design characteristics

• Axial elasticity approximately four times higher than radial elasticity.
• Rubber element operates primarily in shear.
• Progressive buffering against shocks or accidental overload when used with a large metal washer bearing on the rubber dome.
• Can be fitted as a fail-safe assembly when installed in the recommended shape (shape 1).
• Outer housing offers four flange variants to adapt mounting interfaces.

Specifications

• Configuration: flange
• Material: metal, rubber
• Static load: Max. 2,600 daN; Min. 1 daN
• Diameter: Max. 170 mm (6.693 in); Min. 20 mm (0.787 in)
• Types: 20 standard types; Rubber hardness: 3 grades
• Mounting flange: 4 variants available
