Square anti-vibration mount VIB LD 03

steelstainless steelelastomer

Description

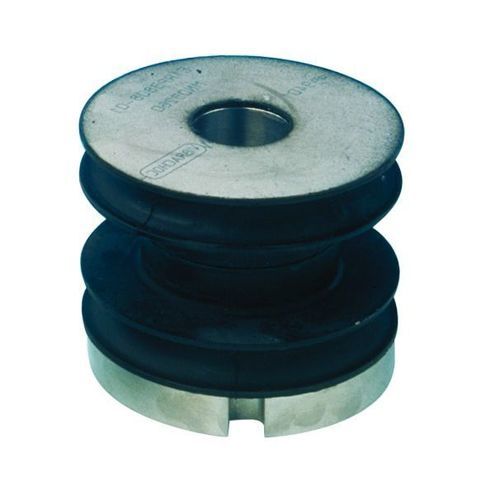

VIB LD 03 is a square anti-vibration mounting designed for naval and marine equipment. It isolates equipment from shocks while providing vibratory and acoustic decoupling using bonded elastomer rings combined with stainless-steel elements.

Decoupling washer composition

• 2 bonded elastomer washers
• 1 stainless steel anti-shock washer
• 1 stainless steel preload spacer

Advantages

• Intrinsic stability under impact: allows the mass to return to its initial position without plastic deformation or residual buckling.
• Suspended mass can withstand several successive shocks if the assembly stability (supports and centre of gravity) is verified beforehand.
• Designed for vibratory and acoustic isolation in marine environments.

Functional specifications

• Maintain suspended mass in the absence of shock while providing vibratory and/or acoustic insulation.
• Limit transmitted force and/or displacement to acceptable values in case of shocks.
• Return the suspended mass to its initial position after shocks.

Technical characteristics

• Configuration: square
• Material: steel, stainless steel, elastomer, plastic
• Applications: naval/marine equipment
• Static load: Max.: 3,500 daN; Min.: 14 daN
• Diameter: Max.: 220 mm (8.661 in); Min.: 8 mm (0.315 in)
