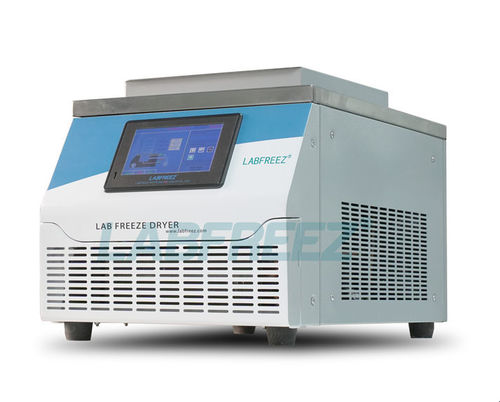

Laboratory freeze dryer FD-10 series

for the food industryfor the pharmaceutical industrystainless steel

Short description

• Compact bench-top lyophilizer for laboratory freeze-drying of samples, vials, flasks and small batches
• DANFOSS (SECOP) compressors with two-stage refrigeration and CFC-free refrigerants
• 7" touch LCD with Labfreez FD management, real-time drying curve, vacuum and condenser temperature display
• Standard condenser <-55°C (‑80°C dual-cascade optional); USB data export; vacuum pump included

Description
The FD-10 Series bench-top lyophilizer is designed for freeze-drying laboratory samples, food, pharmaceutical vials and similar items. It is suitable for R&D labs, QC and small-scale production in medical, pharmaceutical, biological and food applications, meeting standard lyophilization workflows.

Features

• Microprocessor control with 7" touch display showing drying curve, vacuum, condenser temperature, run time and ambient temperature
• Pre-freeze function; transparent drying chamber for observation
• High refrigeration capacity and low noise using DANFOSS (SECOP) compressor; air-cooled system
• 304 stainless steel condenser, shelves and racks; adjustable shelf heights; removable components for cleaning
• Condenser heating defrost (electric defrost optional) for fast ice removal
• -55°C condenser standard for aqueous samples; -80°C dual-cascade condenser recommended for solvent-containing samples (optional)
• Multiple chamber types: R, MR, TP, MTP, MT, FT to suit vials, flasks and multi-port manifolds
• Certifications: CE, ISO 9001, ISO 13485, ISO 14001

Models / Available Chamber Types

• FD-10-R: normal type
• FD-10-MR: stopper + flasks (multi-configuration)
• FD-10-TP: top-press stopper device

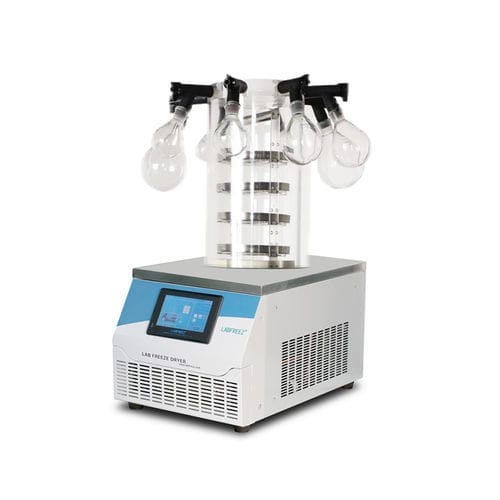

• FD-10-MTP: flasks system
• FD-10-MT: multi-ports manifold

Technical tables (summary)
Model | Dry chamber size (D×H) | Total shelf area | Shelf size | Shelf number | Trays number
FD-10-R | Φ260×430 mm | 0.12 m² | Φ200 × 4 pcs | 4 pcs | 4 pcs
FD-10-MR | Φ260×465 mm | 0.12 m² | Φ200 × 4 pcs | 4 pcs | 4 pcs
FD-10-TP | Φ260×490 mm | 0.08 m² | Φ180 × 3 pcs | 3 pcs | 3 pcs
FD-10-MTP | Φ260×540 mm | 0.08 m² | Φ180 × 3 pcs | 3 pcs | 3 pcs

Vial load examples (by vial Ø) | FD-10-R | FD-10-MR | FD-10-TP | FD-10-MTP
Ø12 mm | 920 pcs | 920 pcs | 560 pcs | 560 pcs
Ø16 mm | 480 pcs | 480 pcs | 285 pcs | 285 pcs
Ø22 mm | 260 pcs | 260 pcs | 165 pcs | 165 pcs

Sample load capacity | FD-10-R / FD-10-MR | FD-10-TP / FD-10-MTP
1.2 L (R / MR) | 0.8 L (TP / MTP)

Condenser temp. | <-55°C (standard); -80°C optional
Cold trap size | Φ215 × 140 mm (Depth × Height)
Ice removal capacity | 3–4 kg / 24 h (typ.)
Cold type | Air-cooled
Defrost type | Natural (electric optional)
Ultimate vacuum | < 5 Pa (empty)
Vacuum pump | Included (standard 2 L/s; higher-end optional)
Install power | 970 W
Voltage | 220 V / 50 Hz or 110 V / 60 Hz
Dimensions (example) | 460 × 625 × (370+430) mm (approx.)
Weight (example) | FD-10-R: 100 kg; FD-10-MR: 110 kg; FD-10-TP: 105 kg; FD-10-MTP: 120 kg; FD-10-MT: 65 kg

Standard configuration

• Stainless steel condenser with opening and rounded corners for corrosion resistance and easy cleaning
• Removable stainless steel shelves and racks (adjustable spacing); 4 or 6 shelves optional
• Stainless steel pre-cooling rack with metal cover; molded glass drying barrel
• DANFOSS (SECOP) compressor, condenser fan, LCD touch display, history data storage and USB export

Optional items

• -80°C condenser
• RS232 & data management software
• Electric defrost device
• Alternative refrigerants (R404a, R502, R23, etc.)
• High-end Leybold vacuum pump; oil mist filter
• Heated shelves & programmable segment control (up to 16 programs, 36 segments each)
• Additional trays, removable drying drum lid, various flask sizes, vial capper, ampoule sealer

Specifications

• Series: FD-10 Series (bench-top laboratory freeze dryer)
• Typical condenser temperature: <-55°C standard; -80°C optional
• Pump rate: 2 L/s (standard pump included)
• Ultimate vacuum: <5 Pa (empty)
• Install power: 970 W; Voltage: 220 V/50 Hz or 110 V/60 Hz
• Dimensions (approx.): 460 × 625 × (370+430) mm; Weight: ~65–120 kg (model dependent)
• Sample capacity: up to ~1.2 L (model dependent); Vial capacities: up to ~920 (Ø12 mm)
• Shelf area: up to 0.12 m²; Ice removal: ~3–4 kg/24 h
• Cooling: air-cooled; Compressor: DANFOSS (SECOP); Controls: 7" touch LCD, data logging and USB export
• Chamber options: R, MR, TP, MTP, MT, FT
