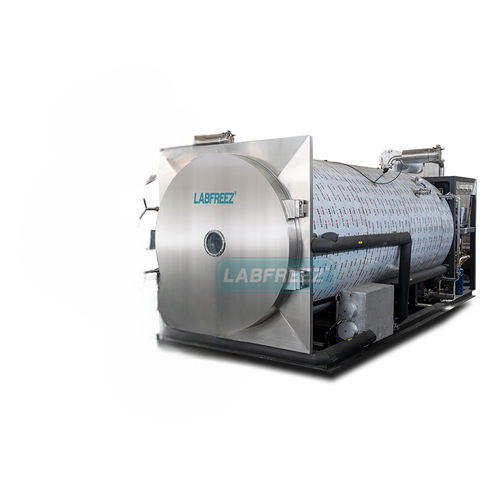

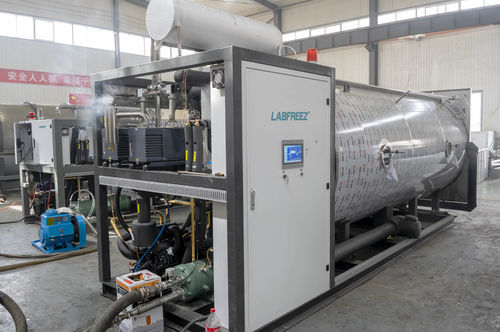

Laboratory freeze dryer FD-PR series

pilotfor the food industryfor the pharmaceutical industry

Introduction
FD-PR Series contact type freeze dryer. The shelf has both heating and cooling functions and the design conforms to GMP standards. Suitable for laboratory tests and small amount production.

Application

• Pharmaceutical industry: freeze-drying for serum, plasma, vaccines, enzymes, antibiotics, hormones, etc.
• Food industry: freeze-drying of coffee, vegetable leaves, fruit juice, strawberries, whole shrimp, meat, special vegetables — preserves color, aroma, taste, shape and nutrients and facilitates long-term storage and transport.
• Nutrition and health products: freeze-drying of royal jelly, pearl powder, ginseng, etc., to preserve active ingredients.
• Biological research: preservation of bacteria, arteries, bones, skin, cornea, nerve tissue and organs while maintaining biochemical and physical properties.
• Other: thermal insulation ceramics for aerospace, wood and silk in archaeology, specimen production, special materials, etc.

Features

• Advanced measurement system to guarantee product quality; complies with GMP.
• Low energy consumption and competitive price.
• Custom design available per customer requirements.
• Certifications: ISO 9001:2015, ISO 14001:2015, CE.

Drying chamber / Shelf

• Mirror polished without dead edge; surface roughness ≤ 0.5 µm.
• Chamber, shelf and hoses tested for leakage resistance.
• Rotate lock design, easy to open (optional automatic hydraulic lock).
• PLC control for shelf heating and cooling, temperature control accuracy ≤ ±1°C.
• Shelf heating method: constant heating or staged heating.

Cold trap

• Constructed in SUS304 or SUS316L.
• Various types optional and flexible layout per requirements.
• Argon arc welding; one-step forming to ensure no leakage and easy cleaning.

Vacuum system

• Preliminary vacuum unit and maintain vacuum unit combined; each unit can be used separately to improve stability and durability.
• Design optionally with multi-stage roots vacuum pump to improve pumping rate; final vacuum ≤ 1 Pa (typical configurations).

Refrigeration system

• High-quality compressor units; piston or screw compressors optional to meet different refrigeration needs.
• Multiple protection functions: high/low voltage protection, oil pressure differential protection, etc., to ensure stable operation.
• Series or parallel compressor units optional to adjust refrigeration capacity and save energy.
• Refrigerants meet international environmental standards.

Circulation system

• Electric heating or steam heating optional.
• Indirect heating via circulating pump and heat exchanger to heat shelf evenly.
• Use of high-stability heat medium to meet temperature requirements.

Control system

• Automatic or manual operation; electronic signatures and multiple passwords supported.
• Friendly HMI displaying detailed machine working state.
• PLC control; constant or staged heating optional.
• Power source interlock protection and automatic alarm functions.
• Remote monitoring via PC connection available.
• Automatic recording and storage of freeze-drying data and curves; data saving function on power failure.

Main Specifications (table 1)
Model | FD-P20R | FD-P25R | FD-P30R | FD-P35R
Input quantity (kg/batch) | 200 | 250 | 300 | 350
Usable shelf area (㎡) | 20 | 25 | 30 | 35
Shelf working temperature (°C) | Room temp ~ 120°C | Room temp ~ 120°C | Room temp ~ 120°C | Room temp ~ 120°C
Shelf clearance (mm) | 95 | 95 | 95 | 95
Shelf dimension (mm) | 2200×600 | 2200×600 | 3300×600 | 3300×600
Shelf layer (layer) | 8+1 | 10+1 | 8+1 | 9+1
Shelf number (pcs) | 18 | 22 | 18 | 20
Temperature difference of shelf (°C) | ±1°C | ±1°C | ±1°C | ±1°C
Condenser lowest temperature (°C) | -60±5°C | -60±5°C | -60±5°C | -60±5°C
Condenser capacity (kg) | 300 | 375 | 450 | 525
Final vacuum (Pa) | 2 | 5 | 5 | 5
Cooling method | (Water cooling) | (Water cooling) | (Water cooling) | (Water cooling)
Cooling water consumption (T/hr) | 20 | 25 | 30 | 30
Defrost water consumption (T/hr) | (Circulating water pond) 5 | (Circulating water pond) 5 | (Circulating water pond) 5 | (Circulating water pond) 5
Defrost method | Spray and immersion | Spray and immersion | Spray and immersion | Spray and immersion
Heating method (kW) | (Electric heating) 16 | (Electric heating) 24 | (Electric heating) 28 | (Electric heating) 24
Operating environment | Temperature 5°C ~ 30°C, humidity < 75% | Temperature 5°C ~ 30°C, humidity < 75% | Temperature 5°C ~ 30°C, humidity < 75% | Temperature 5°C ~ 30°C, humidity < 75%
Total power (kW) | 75.35 | 72 | 105.2 | 125
Service area and height (㎡×mm) | 35×2.8 | 35×2.8 | 40×2.8 | 45×2.8
Weight (kg) | 8000 | 9000 | 9500 | 10000

Main Specifications (table 2)
Model | FD-P40R | FD-P50R | FD-P60R | FD-P100R | FD-P150R | FD-P200R
Input quantity (kg/batch) | 400 | 500 | 600 | 1000 | 1500 | 2000
Usable shelf area (㎡) | 40 | 52 | 60 | 102 | 157 | 201
Shelf working temperature (°C) | Room temp ~ 120°C (all models) | | | | |
Shelf clearance (mm) | 95 (all models) | | | | |
Shelf dimension (mm) | 3300×600 | 3300×600 | 5000×600 | 5000×600 | 7800×600 | 9900×600
Shelf layer (layer) | 10+1 | 13+1 | 15+1 | 17+1 | 17+1 | 17+1
Shelf number (pcs) | 22 | 28 | 32 | 36 | 36 | 36
Temperature difference of shelf (°C) | ±1°C (all models) | | | | |
Condenser lowest temperature (°C) | -60±5°C (all models) | | | | |
Condenser capacity (kg) | 600 | 750 | 900 | 1500 | 2250 | 3000
Final vacuum (Pa) | 6 | 5 | 6 | 5 | 5 | 5
Cooling method | Water cooling or evaporative cooling (models) | | | | |
Cooling water consumption (T/hr) | 40 | 40 | 50 | 53.7 | 150 | 50
Defrost water consumption (T/hr) | Circulating water pond values (6 / 6 / 8 / 10 / 15 / 15) depending on model | | | | |
Defrost method | Spray and immersion (all models) | | | | |
Heating method | Electric heating or steam heating (all models) | | | | |
Total power (kW) | 117.7 | 113 | 160 | 172.5 | 231 | 350
Service area and height (㎡×mm) | 80×3, 100×4.2, 130×4.2, 200×4.5, 300×4.5, 380×4.5 (varies by model) | | | | |
Weight (kg) | 10500 | 12500 | 13000 | 35000 | 50000 | 40000
Quick freezing room / Trolley dimensions and quantities are model-dependent and available in the full technical tables.

Caractéristiques / Spécifications techniques

• Series name: FD-PR Series (integrated round chamber, contact type).
• Shelf temperature range: Room temperature up to 120°C; control accuracy ≤ ±1°C.
• Condenser lowest temperature: typically -60±5°C.
• Final vacuum capability: down to 1–6 Pa depending on model and vacuum configuration.
• Condenser capacities range from ~300 kg up to several thousand kg depending on model.
• Heating options: electric heating or steam heating; shelf heating modes: constant or staged.
• Cooling methods: water cooling or evaporative cooling (model dependent); defrost: spray and immersion; defrost water consumption varies by model.
• Control: PLC + HMI, automatic/manual operation, data recording and remote monitoring supported.
• Materials: chamber and cold trap in SUS304 / SUS316L; argon-arc welding for leak-free construction.
• Certifications: ISO 9001:2015, ISO 14001:2015, CE.
