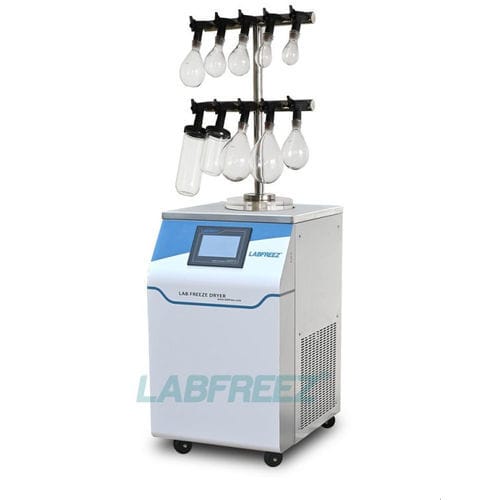

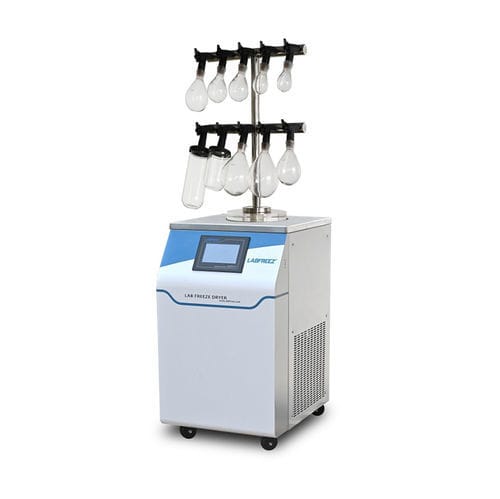

Laboratory freeze dryer FD-12-FT

for the food industrywith electric heatingstainless steel

Short description

• Germany DANFOSS Secop compressors
• Two-stage refrigeration; CFC-FREE refrigerants
• 7" touchscreen with Labfreez® FD graphical management
• On-screen drying curve, vacuum, condenser temp., run time and ambient temp.
• Standard -55°C condenser; -80°C and -110°C optional
• Optional shelf-heating recipe program
• Condenser electric heating defrost for fast ice removal
• USB interface for data export and printing
• Multiple chamber types: FD-R, FD-MR, FD-TP, FD-MTP, FD-MT, FD-FT

Overview
FD-12 series laboratory freeze dryers (lyophilizers) are designed for freeze-drying laboratory samples and small-batch production. The units combine stainless-steel condenser and adjustable shelves, a transparent drying chamber for observation, and microprocessor control with graphical display for monitoring and logging drying curves and key parameters.

Characteristics

• Microprocessor control with 7" touch LCD showing drying curve, vacuum, condenser temperature, run time and ambient temperature
• Pre-freezing function for sample preparation
• High refrigeration capacity and low noise using DANFOSS (SECOP) compressors with CFC-FREE refrigerant
• 304 stainless-steel condenser, racks and shelves for corrosion resistance; shelves height-adjustable for flexible loading
• Transparent drying chamber for visual process monitoring
• Compact, floor-standing design for laboratory environments
• Condenser options: -55°C (standard), -80°C or -110°C dual-cascade for solvent-containing samples (optional)
• Electric heating defrost for quick turnaround between runs (optional)
• Nitrogen inflation valve available for inerting and transfer operations
• Multiple chamber configurations (normal, manifold, top-press, T-type) to fit vial, flask and ampoule workflows
• CE / ISO 9001 / ISO 13485 / ISO 14001 certified

Common samples
Typical applications include biological samples, vials, food samples, small-batch bulk bioproducts and other materials suitable for lyophilization; used in R&D, QC and small production labs.

Model descriptions (FD-12 series variants)
Available variants include: FD-12-R, FD-12-R-80, FD-12-R-110, FD-12-MR, FD-12-MR-80, FD-12-MR-110, FD-12-TP, FD-12-TP-80, FD-12-TP-110, FD-12-MTP, FD-12-MTP-80, FD-12-MTP-110, FD-12-FT, FD-12-FT-80, FD-12-FT-110, FD-12-MT, FD-12-MT-80, FD-12-MT-110 — covering normal, manifold, top-press, manifold-press, T-type flask and T-type ampoule configurations.

Tables / key comparative lines (representative)
Dry chamber size (examples by variant)
FD-12 variants: Ф260×430 / Ф260×465 / Ф260×490 / Ф260×540 / 430×480 (H×L)
Total shelf area (m2)
Typical values: 0.08–0.12 m2 depending on variant
Shelf size / spacing / numbers
Examples: shelf dia. Ф200 or Ф180 mm; shelf spacing ~70 mm; typically 3–4 shelves/trays depending on model
Vials load quantity (examples)
Vial Ø12 mm: up to ~920 pcs; Ø16 mm: ~480 pcs; Ø22 mm: ~260 pcs (varies by model and tray configuration)

Condenser & vacuum system
Condenser temperature options: standard -55°C; optional -80°C or -110°C dual-cascade. Cold trap size examples: Ф215 × 140 mm; capacity ~5 L. Ice removal capacity: ~4 kg/24 h (typical). Air-cooled refrigeration; ultimate vacuum to ~1 Pa. Vacuum pump included (typical pump rate ~2 L/s; pump model varies). Electric heating defrost ensures fast ice removal.

Electrical & mechanical
Installed power examples: ~970 W (some variants up to ~1300 W). Voltage: 220 V/50 Hz or 110 V/60 Hz (optional). Host dimensions examples: 580 × 500 × 720 mm (-55°C) or 770 × 550 × 720 mm (-85°C). Vacuum pump dimensions example: 480 × 140 × 240 mm. Total weight depends on variant (~90–130 kg typical).

Optional & accessories (selection)

• -80°C or -110°C condenser options
• RS232 & PC software for data logging
• Electric defrost device
• Alternate refrigerants (R404a, R502, R23, etc.)
• Oil mist filter
• Shelf heating & programmable recipe control
• Additional trays, removable drying drum lids, vial capping/stoppering and ampoule sealing devices
• Higher-performance vacuum pumps (Leybold etc.)

Technical specifications

• Brand: Labfreez Instruments (FD-12 series)
• Model: FD-12-FT (variants within FD-12 family)
• Ice removal capacity (typical): ~4 kg/24 h
• Cold trap capacity: 5 L
• Condenser temperature options: -55°C standard; -80°C and -110°C optional
• Ultimate vacuum: ~1 Pa
• Vacuum pump: included (typical pump rate 2 L/s; model dependent)
• Shelf area: ~0.08–0.12 m2 (variant dependent)
• Shelves/trays: typically 3–4 (variant dependent)
• Sample load capacity (example): 0.8–1.2 L (variant dependent)
• Installed power: ~970 W (varies by variant; some up to ~1300 W)
• Voltage: 220 V/50 Hz or 110 V/60 Hz (optional)
• Host dimensions (examples): 580×500×720 mm (-55°C) or 770×550×720 mm (-85°C)
• Materials: 304 stainless steel condenser, shelves and racks; transparent drying chamber
• Control: 7" touch screen, graphical drying-curve display, USB export for data
• Certifications: CE, ISO 9001, ISO 13485, ISO 14001
