Pilot freeze dryer FD-20F series
for the pharmaceutical industryfor the food industrywith electric heating

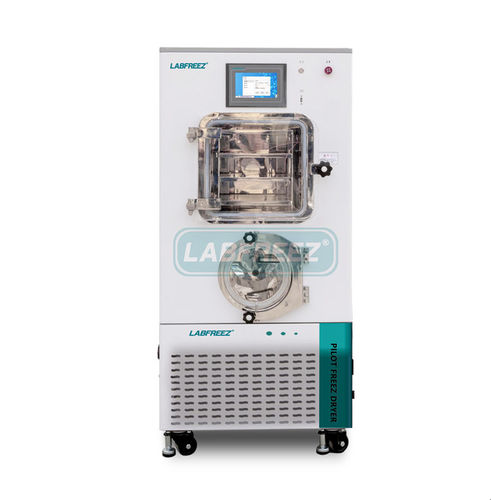

Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating
Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating

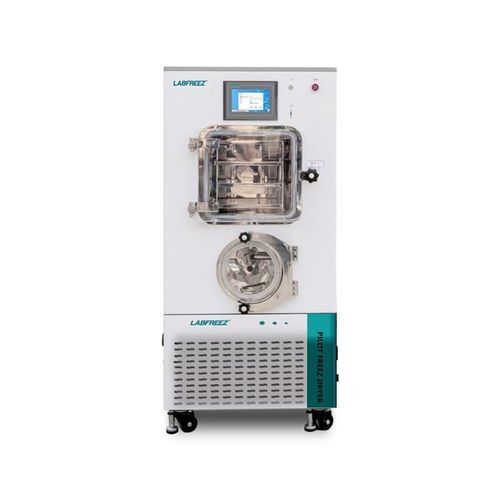

Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating - image - 2
Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating - image - 3
Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating - image - 4
Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating - image - 5
Pilot freeze dryer - FD-20F series - Labfreez Instruments Group Co., Ltd - for the pharmaceutical industry / for the food industry / with electric heating - image - 6
Add to favorites
Compare this product
Go to the Labfreez Instruments Group Co., Ltd website for more information

Characteristics

Laboratory/process
pilot
Applications
for the pharmaceutical industry, for the food industry
Other characteristics
with electric heating, hygienic, stainless steel

Description

Product overview
  • FD-20F pilot freeze dryer for in‑situ freezing and primary drying in the same chamber to avoid manual sample transfer and contamination.
  • Shelf area ~0.2–0.3 m2; typical batch load approximately 2–4.5 kg raw material depending on product and loading configuration.
  • Independent condenser (cold trap) with ice‑removal capacity ≥ 6 kg / 24 h (model dependent).
  • Automatic and manual operation modes; programmable recipes and freeze‑drying curve storage; USB data export and optional remote control by PC or mobile.
  • Silicone‑oil circulating thermal medium with Grundfos circulating pump; electric‑heating variants available.


REFRIGERATION SYSTEM
  • Dual‑stage cooling architecture to support fast cooldown and simplified maintenance.
  • Hermetic compressors from reputable manufacturers (examples: Tecumseh, DANFOSS) for low noise and high cooling capacity.
  • Danfoss pressure controller and valves for stable operation.
  • Condenser temperatures down to ≤ -86°C for silicone‑oil machines and ≈ -60°C for electric‑heating machines; fast cooling from +20°C to -40°C in ~30 min (typical).
  • Shelf temperature control range: -50°C to +70°C ±1°C (balanced).
  • Air‑cooled option available for room installation without external cooling unit. Uses CFC‑free refrigerant; brazed plate heat exchanger included.


DRY CHAMBER
  • Rectangular in‑situ chamber allowing pre‑freezing and drying without manual transfer.
  • Chamber, shelves and trays in polished SS304 (SS316 optional for contact parts with corrosive materials).
  • High‑transparency plexiglass observation door; inner rounded corners for cleaning; inner wall roughness ≤ 0.6 μm; shelf flatness ≤ ±0.5 mm/m.
  • Oil‑circulation heating for high temperature precision (common in pharma/bio applications); electric heating variant available (commonly used for food applications).
  • Shelf heating uses safe voltage and controllable heating rate; each shelf is tested for roughness and flatness to ensure uniform sample temperature.
  • Optional wall‑cross design to meet GMP requirements.


CONDENSER (COLD TRAP)
  • Large‑capacity condenser typically in SS304 (SS316 optional for highly corrosive materials).
  • Lowest condenser temperature ≤ -85°C (silicone‑oil); ≤ -60°C (electric‑heating variant).
  • Cylinder‑type cold trap (FD‑20F and selected models) with plexiglass door and efficient ice removal; cooling‑pipe condensers used on other variants.
  • Patented gas diversion technology for uniform cold trapping; electric heating around condenser chamber to assist ice removal.


CIRCULATION SYSTEM
  • Grundfos (GUNDFOS) shielded circulating pump with PID control for oil circulation; uses low‑temperature, low‑viscosity silicone oil as the thermal medium.
  • Circulation system applied across FD‑20F, FD‑30F‑TP, FD‑50F, FD‑100F and FD‑200F series.


FD‑LYO CONTROL SYSTEM
  • Combination of manual tuning and automatic batch production modes.
  • PLC control with touchscreen (examples: 7" LCD touch graphic display; Siemens PLC and 10" touch optional).
  • Shelf temperature adjustable and controllable; suitable for pilot and small production use.
  • 32 programmable slots (up to 36 segments per program noted); real‑time parameter modification and curve storage.
  • Built‑in recorder and USB interface for data export; FD‑LYO PC software and remote control app optional.
  • Sensor calibration function, real‑time alarm display, historical alarm query and multi‑level user/password management.


VACUUM SYSTEM
  • Standard two‑stage rotary vane vacuum pump with automatic vacuum adjustment and setpoint control.
  • Ultimate vacuum ≤ ~1–5 Pa achievable with higher‑end pump options (LEYBOLD/ULVAC/Edwards optional).
  • Typical pump performance: atmosphere to ~10 Pa in less than ~30 min; system leak rate < 10 Pa·L / sec (typical).


SAFETY PROTECTION
  • Whole‑machine protection and electrical interlocks for control and safety.
  • Alarm functions for vacuum, heating and other faults; power on/off protection and sublimation‑process safeguards.
  • Condenser‑vacuum interlock and other interlocks to protect samples and equipment in abnormal conditions.


OTHER FEATURES
  • Normal configuration suitable for bulk raw products (food, fruit, herbal extracts, biomaterials); stoppering configuration available for vial stoppering.
  • Inflatable (water) valve with safety diaphragm can be connected to an inert gas source for drying and inert‑gas fill to extend shelf life.
  • Certificates referenced: CE / ISO 9001 / ISO 13485 / ISO 14001; configurable to meet GMP on request.


Key specifications
  • Model: FD‑20F Series.
  • Freeze‑drying area: ~0.2–0.3 m2 (model dependent).
  • Shelf temperature range: -50°C to +70°C (±1°C balanced).
  • Condenser lowest temp: ≤ -85°C (silicone‑oil) or ≈ -60°C (electric‑heating).
  • Condenser ice removal capacity: ≥ 6 kg / 24 h; condenser volume: 40 L.
  • Ultimate vacuum: ≤ 5 Pa (standard); vacuum pump: 2XZ‑4 (4 L/s typical).
  • Power: 220 V / 50 Hz or 110 V / 60 Hz; nominal power ~3000 W.
  • Approx. weight: 300–310 kg depending on configuration; dimensions (examples): 770 × 750 × 1520 mm (FD‑20F‑R) / 770 × 750 × 1650 mm (FD‑20F‑TP).
