Process freeze dryer FD-PE series

pilotfor the food industryfor the pharmaceutical industry

Product overview

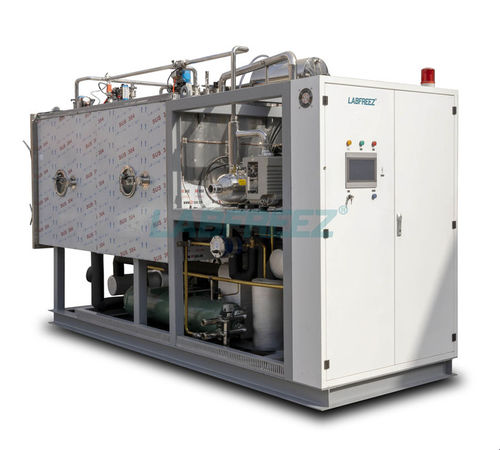

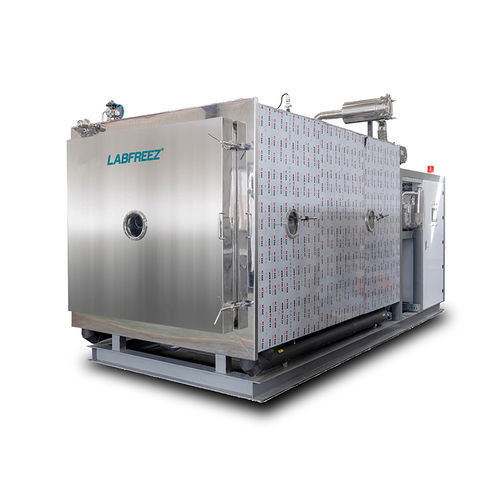

FD-PE series universal vacuum freeze dryer is designed for lyophilization of pharmaceutical raw materials, herbal medicines, biologicals, food, fruits and chemical intermediates. Models cover pilot to large-scale production with shelf areas from 1.15 m2 to 60 m2.

Advantages

• Separator with patented design for high pressure resistance, flatness and uniform shelf temperature.
• High-efficiency mixed refrigerant for lower freezing point and improved heat exchange.
• Drying-curve optimization algorithm controlling heating rate and vacuum during drying.
• Patented gas diversion and control for strong vapor capture and improved drying efficiency.
• Vacuum adjustment during drying to prevent foaming or blow-up of sensitive materials.
• Industrial embedded touch HMI and SH-HPSC-IV modular controller for accurate process control.
• LYO-CONTROL system for recipe storage and real-time process adjustments; optional LYO-MEGA host for long-term data logging and traceability.
• Manual and automatic modes to support process development and batch production; user-level access and password protection.
• Customizable configurations and choice of compressor brands where specified.

Main functions

• Refrigeration system with Tecumseh or Bitzer compressor options.
• Vacuum system with ultimate vacuum ≤ 5 Pa and vacuum regulation during drying.
• Circulation and automatic water drain systems; auto defrost and automatic backfill control.
• Freeze point test, automatic pressure rise test and sensor calibration functions.
• Automatic and manual operation with data recording (example: 60 days onboard for certain models).
• 7.5-inch industrial touch screen HMI and dedicated controllers; optional host PC integration.

Specifications

• Model range: FD-P1E/1SE up to FD-P60E/60SE covering shelf areas 1.15 to 60 m2.
• Shelf temperature range: -50 to +80 °C across models; condenser capability ≤ -75 °C.
• Material load capacity (10 mm bed): from 10 L (small models) up to 600 L (largest models).
• Shelf quantity examples: 4+1 to 20+1 depending on model; typical shelf spacing 80 mm (some large models 60 mm).
• Ice capture capacity: from ≥20 kg/batch to ≥1200 kg/batch depending on model.
• Cooling: water-cooled refrigeration circuits; total installed power varies by model (typical range 15–210 kW and higher for largest units).
• Weights and dimensions vary by model; consult manufacturer data for model-specific values.

Safety

• Independent overcurrent and overload protection for subsystems.
• Interlock logic and system interlocks including vacuum pump protection.
• Heating overtemperature protection and process protection routines for freeze-drying cycles.
• Designed to support GMP requirements with IQ/OQ/PQ documentation available per manufacturer.

Technical characteristics

• Construction: main components stainless steel (SS304 standard, SS316 optional) and branded compressors, valves and pumps as specified.
• Control: embedded HMI, SH-HPSC-IV modular controller; optional LYO-CONTROL and LYO-MEGA host PC for recipe and long-term data management.
• Operation modes: manual, automatic; user-level access control and password protection.
• Process features: freeze point test, auto pressure rise, auto defrost, automatic backfill, vacuum adjustment during drying and data logging.
• Customization available to meet specific process or regulatory requirements.
