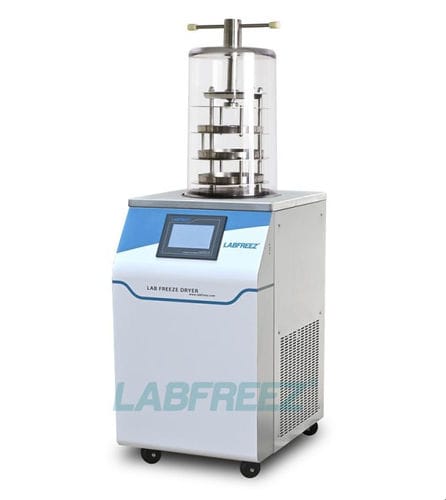

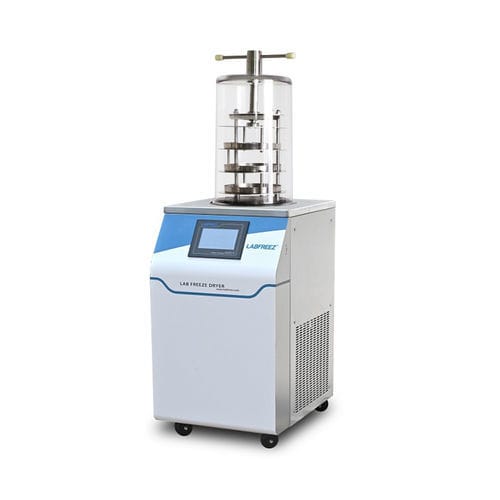

Laboratory freeze dryer FD-12-TP

for the food industrywith electric heatingstainless steel

Product overview

• FD-12 series lab freeze dryer (lyophilizer) designed for laboratory-scale freeze-drying and small production; FD-12-TP is the top-press variant with a total shelf area of 0.08 m² and ice removal capacity 4 kg/24 h.
• DANFOSS (SECOP) compressors with two-stage refrigeration using CFC-FREE refrigerants; air-cooled design.
• 7" touch screen with Labfreez® FD management: drying curve, vacuum, condenser temperature, run time and ambient temperature; USB data export and printing.
• Standard condenser -55°C; optional -80°C and -110°C dual-cascade for solvent-containing samples; optional shelf-heating program and multiple chamber configurations.

Detailed features / description
FD-12 series offers microprocessor control with graphical touchscreen, pre-freezing function, corrosion-resistant 304 stainless-steel condenser, tops, racks and shelves, and a transparent drying chamber for safe observation. Options include dual-cascade condensers for very low temperatures, electric heating defrost for rapid ice removal, nitrogen inflation valve and manifold/stoppering configurations for vials, ampoules or flasks to support varied laboratory workflows.

Characteristics (detailed)

• Microprocessor control and 7" LCD touch display with drying curve, vacuum, condenser temp, run time and ambient temp.
• Pre-freezing function for sample protection.
• High refrigerating capacity and low-noise DANFOSS (SECOP) compressor using CFC-FREE refrigerant.
• 304 stainless steel condenser, tops, racks & shelves; adjustable shelf heights and removable trays for cleaning.
• Transparent drying chamber (integrally molded plastic/glass) for safe observation.
• Compact design with small footprint and straightforward operation.
• Condenser temperature options: -55°C standard; -80°C and -110°C dual-cascade optional for solvent or low-eutectic samples.
• Optional electric heating defrost for fast turnaround and nitrogen inflation valve for inerting.
• Multiple chamber types available: R, MR, TP, MTP, MT, FT to match vial, ampoule or flask workflows.
• Certifications: CE, ISO 9001, ISO 13485, ISO 14001.

Common samples
Typical sample types: biological laboratory samples, food and fruit samples, vials, ampoules, small bulk biological samples, traditional medicine and general laboratory test samples.

Model descriptions (available variants)
Available FD-12 variants include FD-12-R | FD-12-R-80 | FD-12-R-110 | FD-12-MR | FD-12-MR-80 | FD-12-MR-110 | FD-12-TP | FD-12-TP-80 | FD-12-TP-110 | FD-12-MTP | FD-12-MTP-80 | FD-12-MTP-110 | FD-12-FT | FD-12-FT-80 | FD-12-FT-110 | FD-12-MT | FD-12-MT-80 | FD-12-MT-110 to cover manifold, top-press, flask and tray workflows.

Specifications (key)

• Dry chamber sizes (examples): Ф260×490 mm (FD-12-TP).
• Total shelf area: 0.08–0.12 m² depending on variant (FD-12-TP: 0.08 m²).
• Shelf size / distance / number: Ф180 mm / 70 mm / 3 shelves (FD-12-TP).
• Sample load capacity: ~0.8 L (FD-12-TP); vial load examples provided per model.
• Cold trap capacity: 5 L; ice removal capacity: 4 kg/24 h.
• Ultimate vacuum: ~1 Pa; pump rate: ~2 L/s; vacuum pump included.
• Install power: ~970 W (variant dependent up to ~1300 W); voltage options 220 V/50 Hz or 110 V/60 Hz.
• Host dimensions and weight vary by condenser option and model.

Standard configuration

• 304 stainless-steel condenser with opening and stainless-steel operation tops; seamless rounded welding for corrosion resistance and easy cleaning.
• Stainless-steel shelves & racks (removable, adjustable); pre-cooling rack with metal cover.
• Integrally molded transparent drying chamber to reduce breakage risk.
• SECOP (DANFOSS) compressor, condenser fan, LCD touch display with history and USB export; vacuum pump included.

Optional list

• FD1001: -80°C condenser
• FD1002: RS232 & software
• FD1003: Defrost device (electric heating)
• FD1004: Alternative refrigerants (R404a, R502, R23, etc.)
• FD1005: Oil mist filter
• FD1006: Shelf heating & program segment control
• FD1007: Additional trays (6 pcs)
• FD1008: Removable lid for drying drum
• FD1009: Flask kits (100 ml, 250 ml, 500 ml, 1000 ml)
• FD1010: Leybold vacuum pump (alternative)
• FD1011: Touch LCD upgrade
• FD1012: Anti-back oil device
• FD1013: Eutectic point test device
• FD1014: Vial capper
• FD1015: Ampoules sealing machine

Notes
Manufacturer/brand: Labfreez Instruments. Multiple chamber types and accessory options allow configuration for vials, ampoules, flasks and tray-based sample loads; consult documentation for recommended condenser and pump specifications per laboratory requirement.
