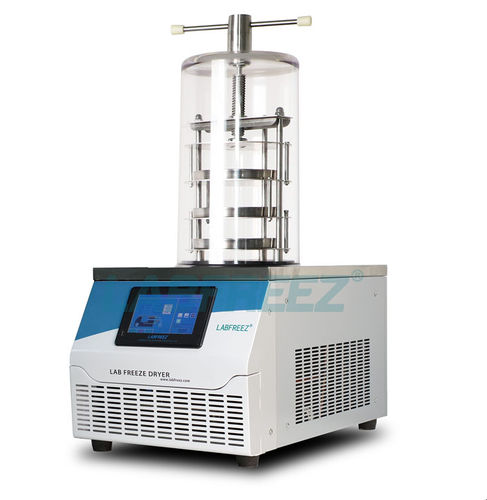

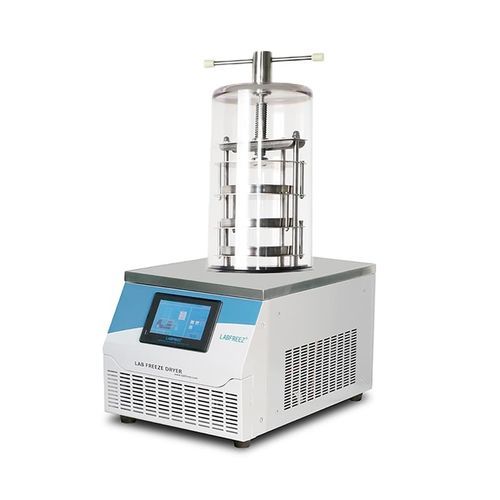

Laboratory freeze dryer FD-10-TP

for the food industryfor chemicals productsfor the pharmaceutical industry

Overview
FD-10 series bench-top lyophilizer FD-10-TP is a laboratory-scale vacuum freeze dryer for R&D, analytical labs and low-volume production used across medical, pharmaceutical, biological, chemical and food applications. It integrates a compact footprint with a front-opening chamber and advanced control for reproducible freeze-drying cycles.

Key features

• Compact bench-top design with front opening cover for easy access and cleaning
• Two-stage refrigeration using CFC-free refrigerants with Germany DANFOSS (SECOP) compressors
• 7-inch touchscreen with Labfreez FD management graphical interface
• On-screen display of drying curve, vacuum, condenser temperature, runtime and ambient temperature
• Standard condenser temperature -60°C; -80°C available as an option
• Condenser electric heating defrost for fast ice removal
• USB interface for data export and printing
• Available chamber configurations: FD-R, FD-MR, FD-TP, FD-MTP, FD-MT, FD-FT
• Includes vacuum pump (standard 2XZ series; Leybold TRIVAC optional)

Design & materials

• Stainless steel condenser, tabletop, racks and shelves for corrosion resistance and easy cleaning; adjustable shelf heights
• Transparent drying chamber for safe visual monitoring of samples
• 304 stainless steel components where corrosion resistance is required

Operational highlights

• Microprocessor control with touch LCD; history data storage, search and export capability
• Pre-freezing function for samples to improve process consistency
• Low noise operation with high refrigeration capacity
• Multiple configurations: normal, top-press, multi-manifold T type, multi-manifold top-press
• Optional accessories: manifold ports, vial capper, additional trays, anti-back oil device, oil-mist filter, shelf heating with programmable segment control, eutectic point test device

Technical specifications

• Models: FD-10-R, FD-10-MR, FD-10-TP, FD-10-MTP, FD-10-MT
• Dry chamber sizes (D × H): FD-10-R Φ260 × 430 mm; FD-10-MR Φ260 × 465 mm; FD-10-TP Φ260 × 490 mm; FD-10-MTP Φ260 × 540 mm
• Total shelf area: 0.12 m2 (some models) / 0.08 m2 (others)
• Shelf sizes and quantity: Φ200 × 4 pcs or Φ180 × 3 pcs; shelf spacing height 70 mm; trays included per model
• Vial capacity examples: Ø12 mm up to ~920 pcs; Ø16 mm ~480 pcs; Ø22 mm ~260 pcs (model dependent)
• Sample load capacity examples: 1.2 L (some models) or 0.8 L (others)
• Flask support examples: supports various flask counts (e.g., 8 pcs)
• Dry rack and cold trap rack: included
• Condenser temperature: < -55°C standard (‑80°C or lower optional)
• Cold trap size: Φ215 × 140 mm (depth × height)
• Ice removal capacity: 3–4 kg per 24 hours
• Cold type: air-cooled
• Defrost type: natural (electric defrost optional)
• Ultimate vacuum: < 5 Pa (empty)
• Vacuum pump: included (standard 2XZ series); pump rate 2 L/s
• Installed power: 970 W
• Voltage: 220 V/50 Hz or 110 V/60 Hz
• Dimensions (example): 460 × 625 × (370+430) mm (footprint/height vary by configuration)
• Weight (examples): FD-10-R ~100 kg; FD-10-MR ~110 kg; FD-10-TP ~105 kg; FD-10-MTP ~120 kg; FD-10-MT ~65 kg
• Certifications: CE, ISO 9001, ISO 13485, ISO 14001
