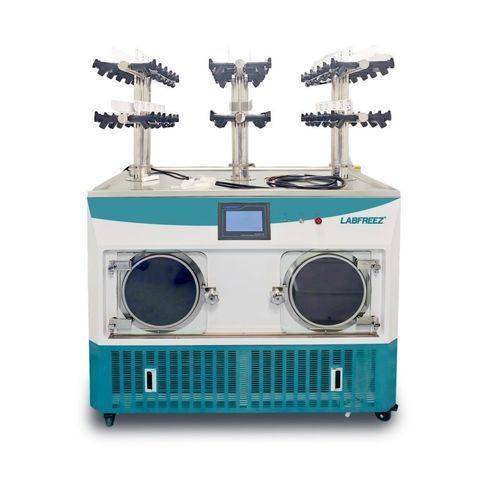

Laboratory freeze dryer FD-18-FT-105DL

processfor the pharmaceutical industrystainless steel

Product overview
FD-18-FT-105DL laboratory continuous sublimation freeze dryer with a minimum cold-trap temperature of −105°C is designed for preservation of bacterial, fungal, polypeptide and microbial samples. The unit ships standard with 24 rubber sealing valves allowing 24 wide-mouth bottles in double rows or 24 eggplant-shaped bottles per manifold; customization available for specific needs. Key operational benefits include extended shelf stability of samples, low variability between cycles and suitability for scaled-up sample processing.

Operation and application
The highly automated system supports continuous alternating defrost and provides 48 manifold positions to reduce instrument downtime. It is suited to open-laboratory sample handling and high-throughput small-molecule synthesis workflows, enabling large-batch processing and improved operational throughput.

Features of Continuous Sublimation Freeze Dryer

• Integrated compact structure with no external flanges for simplified installation and minimized leak risk.
• All product-contact materials are inert and compliant with GLP requirements.
• Cold trap and work surface fabricated from stainless steel for corrosion resistance and ease of cleaning.
• All stainless-steel gas fill/drain valves designed in-house for corrosion resistance and leak-tight performance.
• Gas guidance system engineered to ensure uniform ice capture across the cold trap and high condensation efficiency.
• High-efficiency, energy-saving compressor for stable cooling performance and low noise.
• High-capacity vacuum pump delivering elevated pumping speed and low ultimate pressure.
• Industrial-grade embedded FD-LAB control system for reliable, stable operation.
• Intelligent data recording with historical curve query and USB export for traceability.
• LCD display and recording for cold trap temperature, sample temperature and vacuum curves; data exportable for computer review and printing.

Technical specifications
MODEL : FD-18-FT-105DL
Number of Bottles that can be hung : 48 pcs
Cold trap depth : 500 mm
Cold trap diameter : Ø290 mm
Condensing capacity : ≤12 kg/24h; Condenser capacity Unlimited (2 x ≤1 kg)
Minimum condenser temperature : -105°C (two alternating condensers with automatic defrosting)
Pumping rate : 4 L/S
Ultimate vacuum : ≤5 pa (no load)
Main unit weight : 85 kg
Main unit dimensions : 1365×870×1665 (reference)
Cooling method : Air cooling
Defrosting mode : Automatic defrosting

Key specifications

• Model: FD-18-FT-105DL
• Cold trap minimum temperature: -105°C (alternating condensers with auto-defrost)
• Condensing capacity: ≤12 kg/24h
• Pumping rate: 4 L/s; Ultimate vacuum ≤5 pa (no load)
• Bottle capacity: 48 bottles (manifold positions)
• Cold trap depth/diameter: 500 mm / Ø290 mm
• Main unit weight: 85 kg; Dimensions: 1365×870×1665 (reference)
• Cooling: Air cooled; Defrost: Automatic
