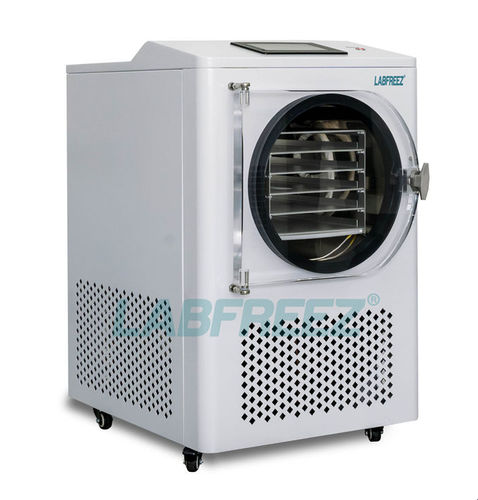

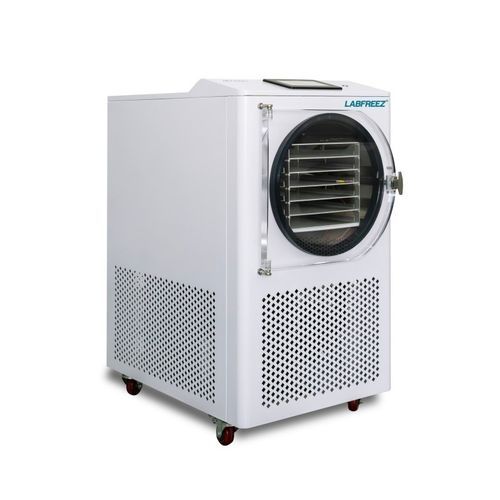

Laboratory freeze dryer FD-CE series

processpilotfor the food industry

Product Overview
The FD-CE series are compact shelf food freeze dryers designed for small-batch food processing, laboratory use and benchtop production. Models cover shelf areas from 0.1 m² to 1.0 m², processing approximately 1–15 kg per batch depending on model. Touch-screen control, programmable temperature/time and shelf heating enable repeatable lyophilization cycles.

Application fields

• Vegetables: edible mushrooms, garlic slices, chives, spring onions, green beans, peas, cucumbers, sweet corn, carrot slices, spinach, asparagus, wild greens.
• Aquatic products & meat: shellfish, shrimp, fish sticks, beef, pork, chicken, diced lamb.
• Seasonings: garlic powder, ginger powder, spring onion powder, tomato, pepper.
• Instant beverages: coffee, tea, soup mixes, soy milk, milk.
• Convenience foods: baby food, snacks, outdoor/camping food.
• Pharmaceuticals: tablets, reagents, powder injections, fresh herbs, ginseng, wolfberry, Panax notoginseng.
• Materials: freeze-drying of advanced materials such as graphene.
• Biologicals: freeze-dried flowers, placenta, cell samples.

Features

• Compact, plug-and-play design with user-friendly touch screen and high automation.
• Integrated tank and trap shorten the sublimation path for efficient vapor removal.
• Imported refrigeration compressor for high cooling capacity, energy efficiency and low noise.
• Aerospace-grade high-transmittance acrylic door for real-time observation of the process.
• Preset freeze-drying programs and one-key cycle start for simplified operation.
• Intelligent fault diagnosis with textual error display to simplify maintenance.
• Safety lock to prevent unintended changes to process parameters.
• Intelligent temperature control and energy-saving clapboard technology for stable, accurate control.
• One-key rapid defrost for safe and efficient condenser thawing.

Specifications (table)
MODEL | FD-10F-CE | FD-30F-CE | FD-40F-CE | FD-60F-CE | FD-100F-CE
Picture | FD-10F-CE image | FD-30F-CE image | FD-40F-CE image | FD-60F-CE image | FD-100F-CE image

Shelf
Shelf area | 0.1 m2 | 0.4 m2 | 0.43 m2 | 0.67 m2 | 1.0 m2
Shelf temperature range | -20 ~ +70°C (no load) for all models
Shelf flatness | ≤ ±1.0 mm / m (all models)
Shelf material | Aviation aluminum (all models)
Number of shelf layers | 3+1 | 4+1 | 5+1 | 5+1 | 4+1
Temperature heating rate | -20°C to +20°C within 60 min (all models)
Number of trays | 3 | 4 | 5 | 5 | 4
Material processing capacity | 1–1.5 L | 4–5 L | 4–5 L | 6–7 L | 10 L
Trays material | ANSI SS304 (all models)

Condenser
Condenser temperature | ≤ -45°C (no load) for FD-10/30/40/60; ≤ -56°C (no load) for FD-100
Condenser defrost | Electric defrost (all models)
Water catching capacity | ≥2 kg/24h (FD-10); ≥4 kg/24h (FD-30); ≥6 kg/24h (FD-40); ≥10 kg/24h (FD-60 & FD-100)

Chamber
Chamber material | AISI 304 SS (all models)
Chamber door material | Acrylic (all models)
Inner wall roughness | Ra ≤ 1.0 µm (all models)
Coiling pipe material | AISI 304 (all models)

Refrigeration System
Compressor type | Hermetic/full-closure compressor (all models)
Compressor brand | International brand (all models)
Compressor number | 1 set (all models)
Refrigerant | CFC-free (all models)
Shelf cooling method | Direct (all models)
Condenser cooling method | Direct (all models)

Vacuum System
Evacuation rate | 2 L/s (FD-10/30/40); 4 L/s (FD-60/100)
Ultimate vacuum | ≤ 5 Pa (no load) (all models)
Pump type | Double-stage rotary vane pump (all models)
Pump number | 1 set (all models)
Chamber pumping rate (dry) | Atmosphere to 10 Pa ≤ 30 min (all models)
System leaking rate | ≤ 10 Pa·l / s (all models)

Heating System
Heating power | 0.3 kW (FD-10); 0.5 kW (FD-30); 0.6 kW (FD-40); 1.2 kW (FD-60); 2 kW (FD-100)
Temperature sensor | PT-100 platinum resistance (all models)

Control System
Control style | Automatic & Manual (all models)
Screen | 5'' color touch (FD-10); 7'' color touch (FD-30/40/60/100)
Main functions | Manual + Auto modes, sensor calibration, intelligent temperature control, end-of-cycle reminders, preset programs
Power supply | AC 220 V, 50 Hz (all models)
Machine power | 1 kW (FD-10); 2 kW (FD-30); 2 kW (FD-40); 2.5 kW (FD-60); 3.5 kW (FD-100)
Cooling method | Air cooled (all models)

Technical specifications

• Series: FD-CE Series (FD-10F-CE, FD-30F-CE, FD-40F-CE, FD-60F-CE, FD-100F-CE).
• Shelf area range: 0.1–1.0 m² depending on model.
• Shelf temperature control: -20 to +70°C (no load); programmable temperature/time and shelf heating.
• Condenser temperature: ≤ -45°C (no load) or ≤ -56°C for FD-100.
• Vacuum: double-stage rotary vane pump, ultimate vacuum ≤ 5 Pa; evacuation rate 2–4 L/s.
• Refrigeration: single full-closure compressor, CFC-free refrigerant, air-cooled condenser.
• Construction: AISI 304 stainless steel chamber, ANSI SS304 trays, aviation-grade aluminum shelves, acrylic door.
• Control: color touch screen (5''/7''), automatic & manual modes, preset programs, intelligent fault diagnosis.
• Power: AC220V/50Hz; machine power 1–3.5 kW depending on model.
