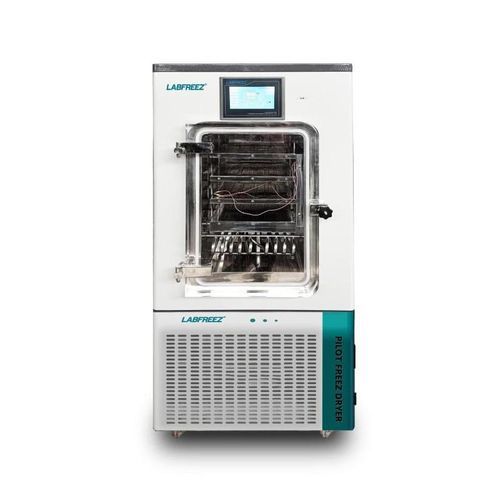

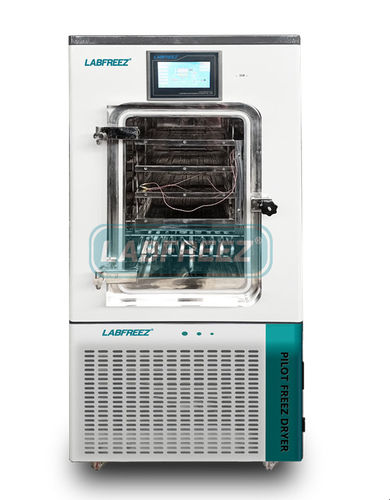

Pilot freeze dryer FD-30F series

for the food industryfor the pharmaceutical industrywith electric heating

Product overview

• Pilot vacuum automatical lyophilizer
• France/Germany brand compressor, high quality polish SS304, flatness <0.4
• Touch screen with Labfreez® FD-EBM control system
• For bulk sample like bio sample, food
• Process capacity: 4 to 6 kg/batch of raw sample
• Manufacturer in China, factory price

Pilot freeze dryers system

• In-situ freeze-drying: electric-heating FD-30F-RE dries in the same chamber to avoid material contamination and realize automated sublimation
• Programmable heating; stores freeze-drying curves for observation and repeatable processes

Refrigeration system

• Dual-stage cooling technology for easier maintenance
• Famous-brand hermetic compressors (e.g., Tecumseh, DANFOSS) for low noise and strong cooling performance
• Danfoss pressure controller and valve for high stability
• Condenser: up to -86°C for silicone oil machines, -60°C for electric heating machines; fast cooling from +20°C to -40°C within ~30 min
• Shelf temperature range -50°C to +70°C ±1°C (balanced)
• Air-cooled operation possible in-room without extra cooling device
• Uses CFC-free refrigerant and brazed plate heat exchanger

Dry chamber

• Rectangular dry chamber; pre-freezing and drying occur in the same chamber without manual transfer
• Chamber and shelves: polished SS304 (SS316 optional for contact parts); high-transmittance plexiglass door for observation; rounded inside corners for easy cleaning
• Inner wall roughness ≤ 0.6 μm; shelf flatness ≤ ±0.5 mm/m to ensure uniform drying
• Shelf heating: oil-circulation heating (high-precision) typical for medical/bio; electric heating suitable for food applications
• Shelves use safe voltage; heating rate controllable; mirror-polish stainless steel shelves tested for roughness and flatness to provide temperature uniformity
• Wall-cross heating is optional to meet GMP standard

Condenser (cold trap)

• Large-capacity condenser made of SS304 (SS316 optional for corrosive materials)
• Lowest condenser temperature: up to -86°C (silicone oil machine), -60°C (electric heating machine)
• Fast cooling from +20°C to -40°C within ~30 min
• Independent cylinder-type cold trap available on certain models (powerful ice removal). Cooling-pipe condenser used on FD-30F-RE and some models
• Patented gas diversion for even cold trapping and high ice-catching ability
• Electric heating around condenser chamber for effective ice removal

Circulation system

• Grundfos (Denmark) shielded circulating pump and PID-controlled electric heating components
• Circulation fluid: low-temperature, low-viscosity silicone oil
• Circulation system applied on FD-20F, FD-30F-TP, FD-50F, FD-100F, FD-200F series

FD-LYO control system

• Flexible manual + automatic control modes: manual, semi-auto and auto for batch and pilot production
• PLC control with graphic touchscreen (standard 7" LCD; Siemens PLC and 10" touch optional)
• Shelf temperature adjustable and controllable; storage of process curves
• 32 programs; each program up to 36 segments; curves storable and parameters modifiable in real time
• Built-in recorder; USB export for data analysis; optional FD-LYO PC software and remote control
• Sensor calibration function to ensure long-term measurement accuracy
• Real-time alarm display and historical alarm inquiry for diagnosis and maintenance
• User levels and password protection for decentralized operation
• Optional WIFI remote control via PC or mobile app

Vacuum system

• Two-stage rotary vane vacuum pump standard; vacuum adjustable automatically
• Ultimate vacuum can reach ~1 Pa; higher-performance vacuum pumps (LEYBOLD / ULVAC / Edwards) optional
• Pump performance: atmosphere to 10 Pa in <30 min (typical)
• System leak rate < 10 Pa·L/s

Safety protection

• Comprehensive machine protection with logic interlocks
• Protection for electrical, vacuum and heating systems; real-time alarms for system faults
• Power-off/on and sublimation-process protections
• Material protection during sublimation; heating cut if vacuum is insufficient
• Condenser-vacuum interlock protection

Other features

• Normal bulk type suitable for raw products such as food, fruit, herbal medicine and bio materials
• Stoppering type available for vials (stoppering caps into vials)
• Inflatable (water) valve with safety diaphragm; can connect to inert gas source to dry and fill with inert gas to extend shelf life
• CE / ISO 9001 / ISO 13485 / ISO 14001 certificates; can conform to GMP as required

Main components (summary)

• Tecumseh / Danfoss compressors (examples)
• Danfoss pressure controllers and valves
• Grundfos circulation pump
• PLC + LCD touch control (Labfreez FD-EBM)
• Two-stage rotary vane vacuum pump (or higher-brand optional)
• SS304 construction (SS316 optional for contact parts)

SPECIFICATIONS (summary table)
Models: FD-30F-RE | FD-30F-R | FD-30F-TP
Heating type: Electric heating | Silicon oil circulation heating | Silicon oil circulation heating
Freeze-drying area: 0.4 m2 | 0.4 m2 | 0.306 m2
Shelf quantity: 4+1 pcs | 4+1 pcs | 3+1 pcs
Shelf temp. range: -50 ~ 70°C (±1°C when balanced) for all models
Temp. difference (uniformity): ±1°C (balance)
Shelf size: 300 × 340 mm (all models)
Material loaded per tray (typical): 4 L (RE/R) | 4 L | 3 L
Shelf spacing: 50 mm (RE/R) | 50 mm | 70 mm
Tray size: 295 × 335 mm (all models)
Tray quantity: 4 pcs (RE/R) | 4 pcs | 3 pcs
Vial capacity (examples): Ф22: 728 (RE/R) | 728 | 546; Ф16: 1440 | 1440 | 1080; Ф12: 2600 | 2600 | 1950
Cold trap temp.: ≤ -60°C (RE) | ≤ -75°C (R) | ≤ -75°C (TP)
Ice capture capability: 8 kg / 24 h (typical) for all models
Defrost: Natural (RE/R) | Electric or hot gas (TP)
Cold type: Air-cooled (all models)
Ultimate vacuum: ≤ 5 Pa (typical)
Vacuum rate: 6 L/s (typical)
Dimensions (mm): FD-30F-RE 890 × 660 × 1210; FD-30F-R 920 × 780 × 1350; FD-30F-TP 1280 × 900 × 1630
Weight: FD-30F-RE ~280 kg; FD-30F-R ~400 kg; FD-30F-TP ~450 kg
Voltage: 220V/50Hz (110V/60Hz option) (all models)
Power: FD-30F-RE 2700 W; FD-30F-R 4500 W; FD-30F-TP 5500 W
Control method: PLC auto + manual

Caractéristiques / spécifications techniques

• Modèle commercial: FD-30F-RE
• Type de chauffage: Electric heating (FD-30F-RE)
• Capacité processus: 4–6 kg par batch (matière brute)
• Shelf area: 0.4 m2
• Shelf temperature range: -50°C à +70°C ±1°C
• Cold trap temperature: jusqu'à -60°C (RE), jusqu'à -75°C (R/TP)
• Ice capture: ~8 kg / 24 h
• Ultimate vacuum: ≤ 5 Pa
• Vacuum pump flow: 6 L/s
• Dimensions (RE): 890×660×1210 mm
• Poids (RE): ~280 kg
• Alimentation: 220V/50Hz (110V/60Hz disponible)
• Puissance (RE): 2700 W
• Contrôle: PLC + écran tactile, 32 programmes, 36 segments par programme
• Construction: SS304 poli (SS316 optionnel pour parties en contact)
