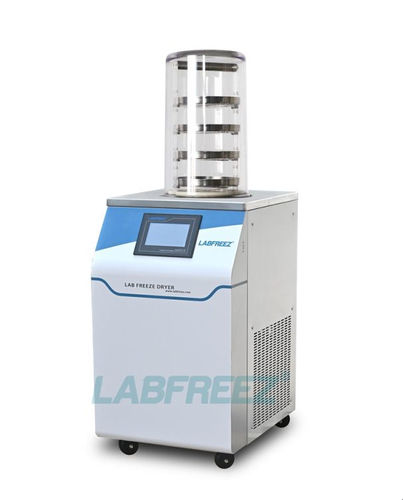

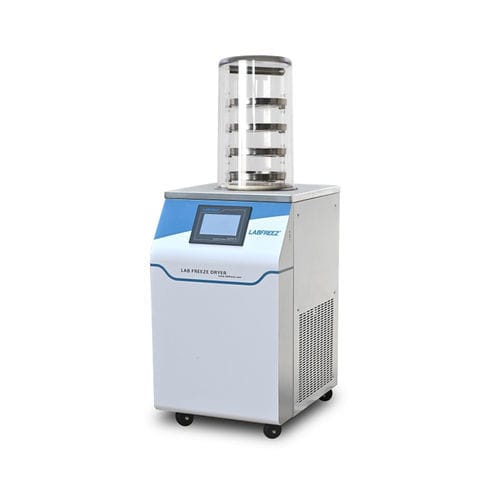

Laboratory freeze dryer FD-12S seriespilotwith electric heatingstainless steel
Add to favorites
Compare this product
Characteristics
- Laboratory/process
- laboratory, pilot
- Other characteristics
- stainless steel, with electric heating
Description
Short description
Product description
Key characteristics (from product page)
Model variants and technical table (as shown on product page)
Technical specifications
- FD-12S shelf heating freeze dryer with recipe program control
- DANFOSS (Secop) branded compressors
- Two-stage refrigeration technology using CFC-free refrigerants; designed for easy maintenance
- 7" large touch screen with Labfreez FD management graphical display
- On-screen display of drying curve, vacuum, condenser temperature, run time and ambient temperature
- Standard -60°C condenser; -80°C and -110°C condensers optional
- Condenser electric heating defrost for fast ice removal
- USB interface for data export and printing
- Compatible chambers/series: FD-R, FD-MR, FD-TP, FD-MTP, FD-MT, FD-FT
- CE and ISO 9001 certified
Product description
- FD-12S heating freeze dryer is a floor-type laboratory unit suitable for freeze-dry testing and small-scale production of lab samples. The unit features programmable control and heated shelves with PID regulation for precise temperature control. A large human-machine interface (touch screen) displays curves and data to provide users with freezing and drying progress and related information; communication interfaces for system connection are provided.
Key characteristics (from product page)
- PID microprocessor control
- Environment-friendly, conforms to international standards (CE, ISO)
- LCD touch display includes shelf temperature curve, drying curve, vacuum and condenser temperature curves, sample temperature curve, run time, ambient temperature, etc.
- Pre-freezing option for samples; Danfoss compressor; widely open condenser without inner coil
- Stores up to 16 programs; each program can have up to 36 segments; program data stored and drying curves memorized
- Pre-cooling shelf can act as draft tube to accelerate drying
- Condenser and control panel made of 304 stainless steel (corrosion-resistant, easy to clean)
- Transparent bell-cap drying chamber for safe observation
- Stainless steel sample shelves with adjustable spacing
- Compact design, simple operation
- -60°C condenser recommended for water-based samples; -80°C for solvent/low-eutectic samples; electric heating defrost optional; nitrogen inflation valve optional
Model variants and technical table (as shown on product page)
- Model columns: FD-12S-R | FD-12S-R-80 | FD-12S-MR | FD-12S-MR-80 | FD-12S-TP | FD-12S-TP-80 | FD-12S-MTP | FD-12S-MTP-80
- Type: Normal | (variant) | Manifold | (variant) | Top-press | (variant) | Manifold-press | (variant)
- Dry chamber size (mm): Φ260×470 (most variants) | some MTP variants Φ260×490
- Vials stoppering device: included on TP/MTP variants
- Manifold flask device: 8 pcs on manifold variants
- Total shelf area (m²): typically 0.12 (some top-press variants 0.08)
- Shelf size (mm): Φ200 or Φ180 depending on variant
- Shelf distance (mm): 70 (adjustable)
- Shelf temperature (°C): -40 ~ +60 (all variants)
- Shelf heating program: Included (all variants)
- Trays number (pcs): 3 or 4 depending on model
- Vials load example: Ø12 mm up to ~920; Ø16 mm ~480; Ø22 mm ~260 (varies by tray layout)
- Sample load capacity examples: ~1.2 L or ~0.8 L depending on variant
- Cold trap: Ф215 × 140 mm, capacity 5 L; ice removal capacity 4 kg/24 h
- Cold type: Air-cooled; Trap defrost: Electric heating defrost
- Ultimate vacuum: ~1 Pa; Vacuum pump included (pump rate 2 L/s)
- Installed power: ~970 W (variant dependent) or ~1400 W for lower-temperature variants
- Voltage: 220 V/50 Hz or 110 V/60 Hz (optional)
- Host dimensions examples: 580×500×720 mm (lower spec) and 770×550×720 mm (colder spec); total weight ~122–140 kg depending on model
Technical specifications
- Condenser standard temperature: -60 °C; options: -85 °C, -110 °C
- Cold trap capacity: 5 L
- Ice removal capacity: 4 kg / 24 h
- Ultimate vacuum: ~1 Pa
- Vacuum pump: supplied; pump rate 2 L/s
- Shelf area: typical total 0.12 m² (top-press variants 0.08 m²)
- Shelf temperature control range: -40 °C to +60 °C, PID control and shelf heating program included
- Number of trays: typically 3 or 4 (model dependent)
- Shelf spacing adjustable; shelf material: stainless steel
- Control/display: 7" touch LCD, stores up to 16 programs (36 segments each), displays multiple process curves
- Data interface: USB for export/printing; historical data storage
- Construction: condenser and panel in 304 stainless steel; transparent drying chamber
- Compressors: DANFOSS (Secop) brand; two-stage refrigeration
- Power/voltage: installed power ~970 W (variant dependent), optional 110 V/60 Hz or 220 V/50 Hz
- Footprint / dimensions: host examples 580×500×720 mm (lower-temp variant), larger host for lower condenser temps; weight approx. 122–140 kg depending on model
