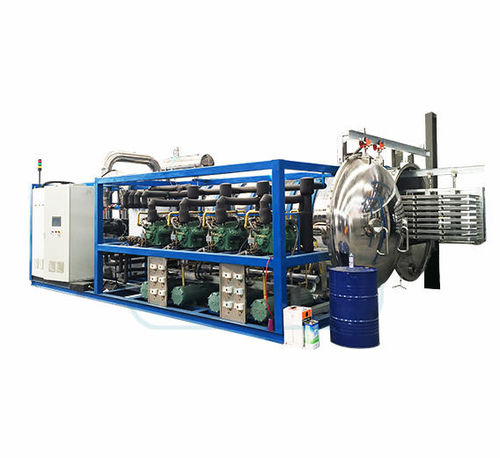

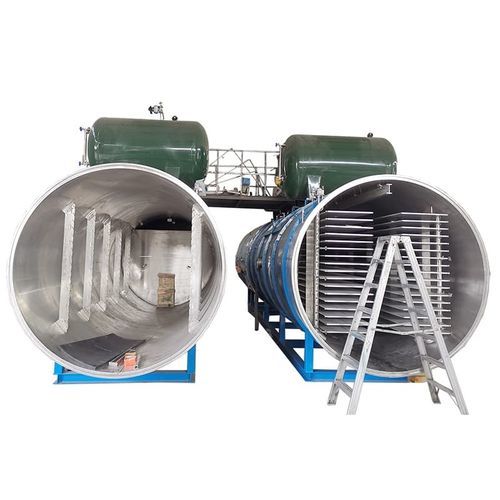

Process freeze dryer FD-FP series

for the food industryfor the pharmaceutical industryfor nutraceutical products

Overview
Vacuum freezing and drying (freeze drying / lyophilization) technology for industrial dehydration of food and biological materials. Freeze-dried products retain shape and volume, show good rehydration, preserved color, flavor and nutrients, and have extended shelf life. This split-type freeze dryer is suitable for vegetables, fruits, condiments, extracts and selected pharmaceutical/biological materials.

DESCRIPTION OF FRUIT FREEZE DRYER
Vacuum freezing and drying is an advanced dehydration process. Compared with conventional drying methods, products processed by lyophilization have a longer shelf life, better rehydration and retain original appearance. The dried product remains essentially unchanged in volume and shape and has a porous structure. Applicable to vegetables, fruits, condiments, aquatic products, biologicals, medicines and beverages.

Scope of application

• Herbal medicines and health supplements: ginseng, Gastrodia, Panax notoginseng, Poria, Dendrobium, Cordyceps, bird’s nest, bee products, deer products.
• Extracts and concentrates: anthocyanin, Ginkgo extract, nutrient solutions, biological reagents, enzymes, antibiotics.
• Aquatic products, meat, poultry, eggs: sea cucumber, abalone, shellfish, shrimp, fish, beef, mutton, chicken and egg products.
• Forest and specialty products: edible fungi, wild vegetables, bamboo shoots, asparagus, pollen, konjac.
• Fruits, vegetables, soups and beverages: strawberry, raspberry, mango, lemon, apple, peach; onion, garlic, sweet potato; instant soups, coffee, juices.

Main Advantages of Fruit Freeze Dryer

• Separate pre-freezing and drying chambers to improve process efficiency and shorten cycle time.
• Space-class aluminum alloy separator with double-sided radiation heating for good temperature uniformity and emissivity.
• Mixed refrigerant system providing lower freezing point, improved heat exchange efficiency and long service life.
• Drying-curve optimization algorithm to control product heating rate and vacuum during drying stages.
• Patented gas diversion and control design for effective moisture capture and high drying efficiency.
• Pallets stamped from aviation-grade corrosion-resistant aluminum alloy with special surface treatment; each drying chamber includes two holding trays.
• Industrial embedded touch screen with SH-HPSC-III modular controller for precise system control.
• FD-MANAGER control system for saving multiple process recipes and real-time adjustment for process optimization.
• Manual and automatic operation modes for R&D and batch production.
• Accurate sensor calibration to ensure long-term process parameter stability.
• User-level and password management for controlled operations.
• Optional FD host computer system for long-term data logging (operation data, curves, alarms) to support traceability. Customization available on request.

Main parts
FD-FP series equipment primarily includes: food pre-freezing system, drying chamber system, heating system, vacuum system, refrigeration system, material conveying system, medium systems, pneumatic system, cleaning and sterilization system.

Main technical parameters (condensed table)
Model | unit | FD-FP15 | FD-FP20 | FD-FP30 | FD-FP50 | FD-FP100 | FD-FP200
Shelf area | m² | 16.2 | 20.6 | 31.68 | 52.92 | 105.84 | 209.52
Process capacity | kg | 150 | 200 | 300 | 500 | 1000 | 2000
Shelf numbers | layer | 9+1 | 8+1 | 8+1 | 9+1 | 18+1 | 18+1
Shelf size | m | 1.2×1.5 | 1.2×2.15 | 1.2×3.3 | 4.9×1.2 | 4.9×1.2 | 9.7×1.2
Shelf height | mm | 15 | 15 | 15 | 15 | 15 | 15
Shelf distance | mm | 80 | 80 | 80 | 80 | 80 | 80
Cart numbers | set | 1 | 2 | 2 | 3 | 3 | 6
Temp. range | °C | ambient ~ 120 (all models)
Ice collecting capacity | kg/B | ≥225 | ≥300 | ≥450 | ≥750 | ≥1500 | ≥3000
Cold trap temp. | °C | ≤-60 | ≤-60 | ≤-60 | ≤-50 | ≤-50 | ≤-50
Cooling mode | - | water cooled (water temp. < 30 °C)
Defrosting | - | water spraying + soaking
Ultimate vacuum | Pa | <5 (smaller models) / <10 (larger models)
Power | kW | 50 | 96 | 120 | 150 | 230 | 440
Cooling water consumption | m³/h | 30 | 40 | 60 | 80 | 160 | 300
Compressed air | L/min | 20 | 30 | 30 | 30 | 30 | 30
Dimensions (L×W×H) | m | 5.2×1.8×3.2 | 6.2×2.3×3.2 | 7.5×2.3×3.2 | 7.0×8.5×3.2 | 7.0×11.0×3.5 | 1.2×11.0×3.5
Overall weight | t | 6 | 10 | 16 | 29 | 46 | 95

Technical characteristics / specifications

• Series: FD-FP series (split-type pre-freezing and drying).
• Application: food & fruit, herbs, extracts, aquatic products, meat, soups, beverages and pharmaceutical/biological materials.
• Heating: double-sided radiation on aluminum alloy separator plates for uniform heating.
• Refrigeration: mixed refrigerant system for efficient freezing and extended service life.
• Control: embedded touch screen + SH-HPSC-III modular controller; FD-MANAGER PC option for recipe management and long-term data logging.
• Operation modes: manual and automatic; user-level password protection.
• Vacuum: capable of deep vacuum (<5–10 Pa depending on model).
• Condenser: water-cooled (water temp. <30 °C); defrost by water spraying and soaking.
• Multiple model sizes with shelf areas from ~16.2 m² to 209.52 m² and process capacities 150–2,000 kg (product-dependent).
