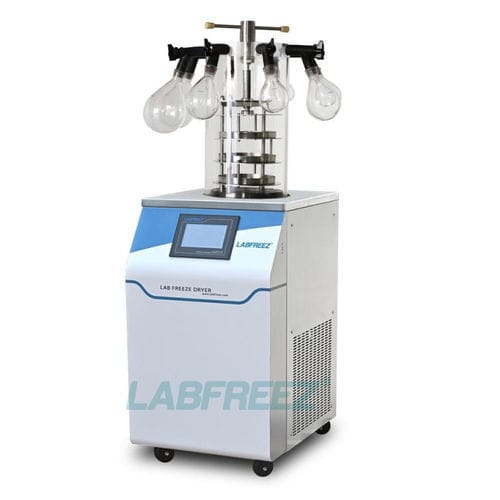

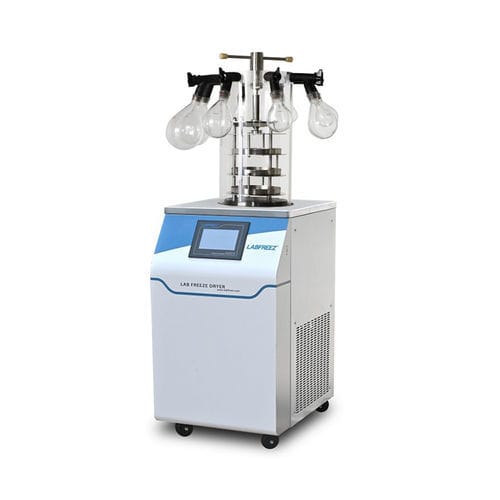

Laboratory freeze dryer FD-12-MTP
for the food industrywith electric heatinghygienic

Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic
Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic
Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic - image - 2
Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic - image - 3
Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic - image - 4
Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic - image - 5
Laboratory freeze dryer - FD-12-MTP - Labfreez Instruments Group Co., Ltd - for the food industry / with electric heating / hygienic - image - 6
Add to favorites
Compare this product
Go to the Labfreez Instruments Group Co., Ltd website for more information

Characteristics

Laboratory/process
laboratory
Applications
for the food industry
Other characteristics
stainless steel, with electric heating, high capacity, hygienic

Description

Short description
  • Germany DANFOSS/Secop compressors; two-stage refrigeration using CFC-free refrigerants for easier maintenance.
  • 7" touch screen with Labfreez® FD management graphic display showing drying curve, vacuum, condenser temperature, runtime and ambient temperature; USB data export.
  • Standard condenser -55 °C; optional -85 °C and -110 °C. Electric condenser heating defrost and optional shelf heating recipe control.
  • Available chamber types: FD-R, FD-MR, FD-TP, FD-MTP, FD-MT, FD-FT.


Description
  • FD-12 series lab freeze dryers (lyophilizers) are designed for laboratory samples and small-batch production with a transparent drying chamber for easy observation and compact, user-friendly operation.
  • Low-noise, high-capacity refrigeration with corrosion-resistant 304 stainless steel condenser, racks and shelves for easy cleaning.
  • Pre-freezing of samples supported; advanced options (-80 °C dual-cascade or -110 °C) available for solvent-containing samples or low eutectic point applications.
  • Electric heating defrost and nitrogen inflation valve are optional for faster turnaround and solvent management.
  • CE / ISO 9001 / ISO 13485 / ISO 14001 certified.


Common samples
  • Biological laboratory samples, food samples, vials, bulk biological materials and other aqueous or solvent-containing samples suitable for lyophilization.


Model family and chamber types
  • FD-12 series models: FD-12-R, FD-12-R-80, FD-12-R-110, FD-12-MR, FD-12-MR-80, FD-12-MR-110, FD-12-TP, FD-12-TP-80, FD-12-TP-110, FD-12-MTP, FD-12-MTP-80, FD-12-MTP-110, FD-12-FT, FD-12-FT-80, FD-12-FT-110, FD-12-MT, FD-12-MT-80, FD-12-MT-110.
  • Type descriptions: R = normal, MR = manifold, TP = top-press, MTP = manifold-press, FT = flask/tank, MT = T-type variants.


Specifications (selected key rows)
  • Dry chamber sizes (examples): Ф260×430 mm; Ф260×465 mm; Ф260×490 mm; Ф260×540 mm; 430×480 (H×L).
  • Total shelf area: 0.08–0.12 m² depending on model; shelf diameters examples: Ф200 mm or Ф180 mm; shelf spacing ~70 mm; 3–4 shelves/trays depending on variant.
  • Vial capacity examples: Ф12 mm → up to 920 pcs; Ф16 mm → up to 480 pcs; Ф22 mm → up to 260 pcs.
  • Sample load examples: 0.8 L or 1.2 L depending on variant; some models support flask sets (8 flasks) and various ampoule/port configurations (8 / 12 / 24 ports).
  • Cold trap: Ф215 × 140 mm, ~5 L capacity; ice removal: 4 kg / 24 h (typical); cold type: air-cooled; defrost: electric heating (optional).
  • Ultimate vacuum: ~1 Pa; typical pump rate supplied 2 L/s (pump family 0.5–15 L/s available).
  • Installed power examples: ~970 W (variants up to ~1300 W); voltage options 220 V/50 Hz or 110 V/60 Hz.
  • Host dimensions examples: 580 × 500 × 720 mm (-55 °C variant); 770 × 550 × 720 mm (-85 °C variant); total weight ~90–130 kg depending on configuration.


Vacuum pump (summary)
  • Pump family examples: 2XZ-0.5 (0.5 L/s), 2XZ-1 (1 L/s), 2XZ-2 (2 L/s), 2XZ-4 (4 L/s), 2XZ-6 (6 L/s), 2XZ-8 (8 L/s), 2XZ-15 (15 L/s).
  • Typical ultimate vacuum without gas ballast: ≤6×10^-2 Pa; typical speed (50 Hz) ~1400 r/min. Power requirements vary by pump model (approx. 0.18 kW to 1.5 kW).


Standard configuration
  • Stainless steel condenser with opening; stainless steel operation tops; seamless welding and rounded corners for corrosion resistance and easy cleaning.
  • Stainless steel shelves & rack (removable, adjustable); pre-cooling rack with metal cover.
  • Integrally molded plastic glass drying barrel; high-performance compressors and condenser fan; 7" touch LCD with history data storage and USB export.
  • Vacuum pump included (model depends on configuration).


Optional accessories / configurable items
  • -80 °C and -110 °C condenser options; alternative refrigerants (R404a, R502, R23, etc.).
  • RS232 interface & monitoring software; electric defrost devices; higher-performance vacuum pumps and oil-mist filters.
  • Shelf heating with recipe program control (up to 16 programs, 36 segments each); additional trays, removable drum lids, vial cappers, ampoule sealers, flask sets and anti-back oil devices.


Technical specifications
  • Brand: Labfreez Instruments.
  • Commercial model designation: FD-12-MTP (FD-12 series family available).
  • Condenser temp: -55 °C standard; -85 °C and -110 °C optional. Ice removal capacity typical: 4 kg / 24 h. Cold trap capacity: ~5 L (Ф215 × 140 mm).
  • Ultimate vacuum: ~1 Pa; vacuum pump typical rate 2 L/s (variants 0.5–15 L/s).
  • Control/display: 7" touch LCD with drying curve, vacuum, condenser temp., runtime, ambient temp.; USB export.
  • Shelf/tray: stainless steel, removable and adjustable; shelf heating and recipe program optional.
  • Power/voltage: example installed power ~970 W; 220 V/50 Hz or 110 V/60 Hz available.
  • Dimensions & weight: examples 580×500×720 mm; weight ~90–130 kg depending on model/options.
  • Certifications: CE, ISO 9001, ISO 13485, ISO 14001.
