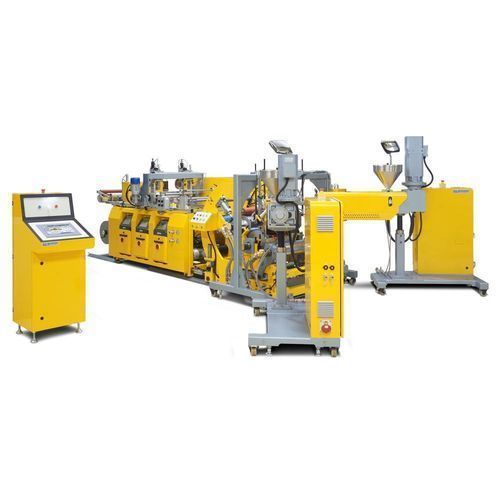

Curved roller LCCR-500-C

drivenfor heavy loadsheavy-duty

Product overview
Labtech presents the heavy-duty C-shaped roller cast film attachment support with an upward rolling stack design. This configuration produces film and sheet at high speed while maintaining effective cooling conduction from the rolls.

Design and operation
This C-shaped chill roll stack ensures optimal contact of the web with the center and top rolls. The first and second rolls are horizontally aligned; the third roll is mounted 45° above the second roll. The web is wrapped 225° around the large center roll and 180° over the top cooling roll. This cast film arrangement enables faster cooling rates and efficient production.

Technical table
Advanced C-Type Cast Film & Sheet Attachments | LCCR-500-C
Roll width: 500 mm
Max. film width: 450 mm
Max die width: 500 mm
Roll diameter, all 3 rolls: 175/350/250 mm
Roll material: alloy-steel
Roll surface finishing: mirror polished
Gear motor power: 3 x 1.0 kW servo motor
Roll gap adjustment: hydraulic open/close; gap adjusted by precision blocks via ratchet handles
Take-off speed: 0.5 – 50 m/mm

Technical specifications

• Model: LCCR-500-C
• Roll width: 500 mm
• Maximum film width: 450 mm
• Maximum die width: 500 mm
• Roll diameters (all 3 rolls): 175/350/250 mm
• Roll material: alloy-steel
• Roll surface finishing: Mirror polished
• Gear motor power: 3 x 1.0 kW servo motor
• Roll gap adjustment: Hydraulic open/close; gap adjusted by precision blocks via ratchet handles
• Take-off speed: 0.5 – 50 m/mm
