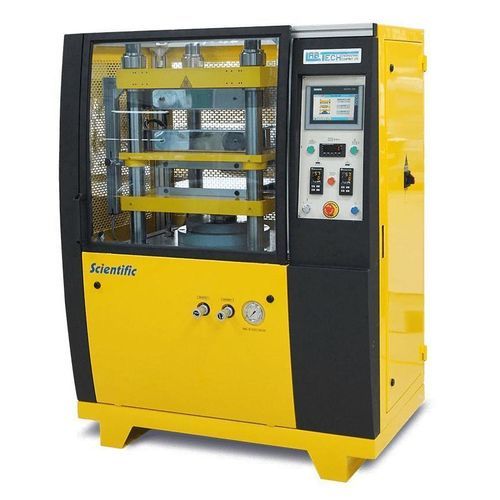

Hydraulic press LP-S-50 series

laboratorydoordouble

Modern designed steel cabinet with curved sliding front door. The front door is equipped with a large Plexiglas window and the control cabinet is recessed so that it is covered by the front door when opened. Laboratory presses from 20 to 80 MT platen closing force, with double set of heating and cooling platens being standard. Available with fully automatic platen insert cooling system, as well as many platen sizes and control options. Our ASTM Presses are supplied with optional high precision chilled water cooling system. - Modern steel cabinet with curved sliding front door and large Plexiglas window - Recessed control cabinet covered by the front door when opened - Laboratory presses from 20 to 80 MT platen closing force - Double set of heating and cooling platens as standard - Fully automatic platen insert cooling system available - Multiple platen sizes and control options - Optional high precision chilled water cooling system Technical Specifications: - Maximum Platen Pressure: 50 MT (LP-S-50/S.ASTM, LP-S-50/ COMP.ASTM), 80 MT (LP-S-80/ COM.ASTM) - Platen Sizes: 300 x 300 mm (LP-S-50/S.ASTM, LP-S-50/ COMP.ASTM), 400 x 400 mm (LP-S-80/ COM.ASTM) - Daylight (max opening): 150 mm (LP-S-50/S.ASTM, LP-S-50/ COMP.ASTM), 180 mm (LP-S-80/ COM.ASTM) - Platen Heating Power: 2 x 6 kW (LP-S-50/S.ASTM, LP-S-50/ COMP.ASTM), 2 x 7.2 kW (LP-S-80/ COM.ASTM) - Hydraulic Motor Power: 4.0 kW (all models) - Max Temperature: 300°C (all models)
