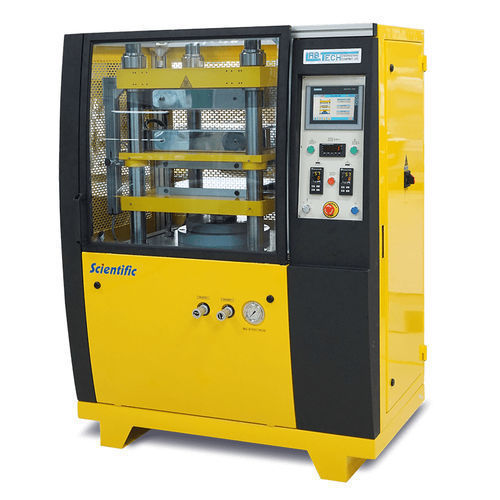

Hydraulic press LP-S series

compressiontestlaboratory

Product overview
Steel cabinet with a curved sliding front door and large Plexiglas viewing window. Recessed control cabinet covered by the front door when opened. LP-S laboratory hydraulic presses provide platen closing forces from 20 to 80 MT and include a double set of heating and cooling platens as standard. Available options include computerized control, high-precision chilled-water cooling and fully automatic platen insert cooling systems.

Features

• Steel cabinet with curved sliding front door and Plexiglas viewing window
• Recessed control cabinet covered by the front door when open
• Double set of heating and cooling platens as standard
• Optional fully automatic platen insert cooling
• Optional high-precision chilled water cooling system
• Multiple platen sizes and control configurations available, including computerized control

Technical table
Hydraulic Press ASTM | LP-S-50/S.ASTM | LP-S-50/COMP.ASTM | LP-S-80/COM.ASTM
Maximum Platen Pressure (MT) | 50 | 50 | 80
Platen Sizes (others on request) (mm) | 300 x 300 | 300 x 300 | 400 x 400
Daylight (max opening) (others on request) (mm) | 150 | 150 | 180
Platen Heating Power (kW) | 2 x 6 | 2 x 6 | 2 x 7.2
Hydraulic Motor Power (kW) | 4.0 | 4.0 | 4.0
Max Temperature (others on request) (°C) | 300 | 300 | 300

Technical specifications

• Models: LP-S-50/S.ASTM, LP-S-50/COMP.ASTM, LP-S-80/COM.ASTM
• Platen closing force: 20 to 80 MT depending on model
• Maximum platen pressure: 50 MT (LP-S-50 variants); 80 MT (LP-S-80)
• Platen sizes: 300 x 300 mm (LP-S-50 variants); 400 x 400 mm (LP-S-80); other sizes on request
• Daylight (max opening): 150 mm (LP-S-50 variants); 180 mm (LP-S-80); other options on request
• Platen heating power: 2 x 6 kW (LP-S-50 variants); 2 x 7.2 kW (LP-S-80)
• Hydraulic motor power: 4.0 kW (all listed models)
• Maximum operating temperature: 300 °C (standard)
• Standard equipment: double heating/cooling platens; optional chilled water cooling and automatic platen insert cooling; multiple platen sizes and control options including computerized control

Additional characteristics

• Operation: hydraulic
• Function: compression, testing
• Applications: laboratory testing and sample preparation
• Structure: double configuration with hot platens
• Control: fully automatic options with integrated controller
• Cooling: water-cooled, optional high-precision chilled-water system
• Force range: Max. 80 MT; Min. 20 MT
• Opening (daylight): 150 mm, 180 mm (other options on request)
• Platen dimensions: 300 x 300 mm, 400 x 400 mm (others on request)
• Hydraulic pump / motor power: 4 kW
• Platen heating power: 2 x 6 kW or 2 x 7.2 kW depending on model
• Maximum temperature: 300 °C
