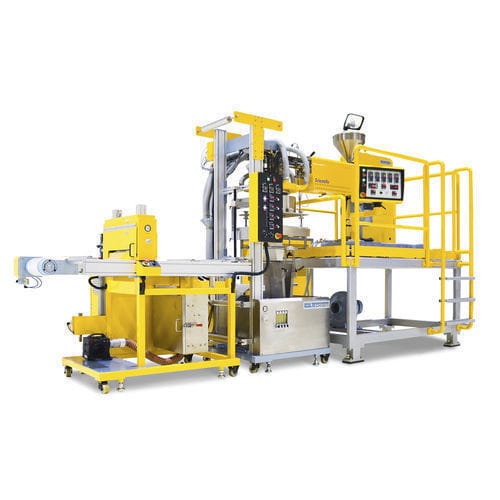

Extrusion line with water cooling LWQF-400

single layermultilayerlaboratory

Overview
This downward-blown water-quenching film blowing line provides very high film clarity by rapidly cooling the melt as it exits the die. It is suitable for producing PP films with high transparency and gloss and can be used for other difficult-to-blow resins. The line is available in single- or multi-layer configurations and includes a system to completely remove water from the film prior to winding.

Applications

• Production of PP films requiring high transparency and surface gloss
• Processing of resins that are difficult to blow using conventional air-cooled, upward-blown methods
• Single- and multi-layer film production for packaging, lamination and specialty film uses
• Laboratory, R&D and pilot production for process development

Product table
Water Quenching film blowing line | LWQF-400
Max lay flat width: 300 mm
Max Film speeds: 40 m/mm
Approx. Max output with 25 mm. extruder: 10 kg/hr
Height from die to Nip-Roll: 1,215 mm
Total height of film tower: 2,500 mm
Total electrical power: 8.7 kW
Die lip diameter: 350 mm

Technical specifications

• Model: LWQF-400
• Max lay flat width: 300 mm (note: page text also references an example line with 350 mm)
• Max film speed: 40 m/mm
• Approx. max output with 25 mm extruder: 10 kg/hr
• Height from die to nip-roll: 1,215 mm
• Total height of film tower: 2,500 mm
• Total electrical power: 8.7 kW
• Die lip diameter: 350 mm
• Equipped with system to completely remove water from the film
• Suitable for PP (high transparency and gloss) and other difficult-to-blow resins
• Available in single- or multi-layer configurations
• Example extruder: 25 mm, 30 L/D
• Manufacturer: LABTECH ENGINEERING COMPANY LTD.
