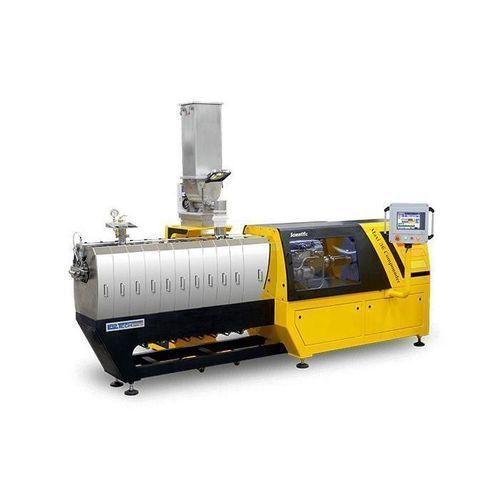

Co-rotating twin-screw screw extruder Maxi26

Overview
This 36 mm co-rotating twin-screw extruder is a production-grade machine built from closed sectional barrel modules with inserted PM-HIP wear linings. Each barrel module has a length of 4D. The extruder is offered in multiple L/D configurations (40 to 60+). Screw elements are manufactured from high wear-resistant PM-HIP steel and mounted on high-torque splined shafts. Two main versions are available: Standard and Maxi36compounder, with drive power options from 55 kW up to 90 kW and optional fan-cooled or water-cooled motors. Depending on the version, maximum screw speed reaches up to 1200 RPM.

Features

• Closed sectional barrel modules with inserted PM-HIP wear linings
• Barrel module length: 4D
• Available L/D sizes: 40 to 60+
• Screw elements made from high wear-resistant PM-HIP steel
• Mounted on high-torque splined shafts
• Two main versions: Standard and Maxi36compounder
• Drive power options: 55 kW to 90 kW
• Optional fan-cooled or water-cooled motors
• Maximum screw speed up to 1200 RPM (depending on version)

Technical data

• Screw speed (Standard | Maxi36compounder): 0 to 900 RPM | 0 to 1200 RPM
• Motor power (Standard | Maxi36compounder): 55 kW | 90 kW
• Water-cooled motor option (kW): 65 kW (Standard) | 90 kW (Maxi)
• Maximum torque at 900 RPM: 2 x 340 Nm | 2 x 350 Nm
• Specific torque (Nm/cm3): 13.53 (Standard) | 13.92 (Maxi)
• Maximum barrel temperature (standard): 400°C
• Typical maximum output (medium to high density compound): 150–200 kg/h (Standard) | 200–250 kg/h (Maxi)

Technical specifications

• Barrel modules: closed sectional type with PM-HIP wear linings
• Barrel module length: 4D
• L/D (length-to-diameter) options: 40 to 60+
• Screw diameter: 36 mm
• Screw material: PM-HIP high wear-resistant steel
• Shaft type: high-torque splined shafts
• Versions: Standard; Maxi36compounder
• Screw speed (Standard): 0 to 900 RPM
• Screw speed (Maxi): 0 to 1200 RPM
• Drive power (Standard): 55 kW
• Drive power (Maxi): 90 kW
• Water-cooled motor option (Standard): 65 kW
• Maximum torque at 900 RPM (Standard): 2 x 340 Nm
• Maximum torque at 900 RPM (Maxi): 2 x 350 Nm
• Specific torque: Standard 13.53 Nm/cm3; Maxi 13.92 Nm/cm3
• Maximum barrel temperature (standard): 400°C
• Typical maximum output Standard: 150–200 kg/h
• Typical maximum output Maxi: 200–250 kg/h

Characteristics / technical specifications

• Number of screws: co-rotating twin-screw
• Output: Min.: 150 kg/h; Max.: 250 kg/h
• Screw diameter: 36 mm (1.4 in)
• Maximum speed: 0 to 1,200 RPM (depending on version)
• Power / drive options: 55 kW, 65 kW, 90 kW
• Motor options: fan-cooled or water-cooled
• Barrel modules: closed sectional with PM-HIP wear linings
• Barrel module length: 4D
• L/D configurations: 40 to 60+
• Screw and shaft: PM-HIP screw elements on high-torque splined shafts
• Maximum torque at 900 RPM: Standard 2 x 340 Nm; Maxi 2 x 350 Nm
• Specific torque: Standard 13.53 Nm/cm3; Maxi 13.92 Nm/cm3
• Maximum barrel temperature (standard): 400°C
