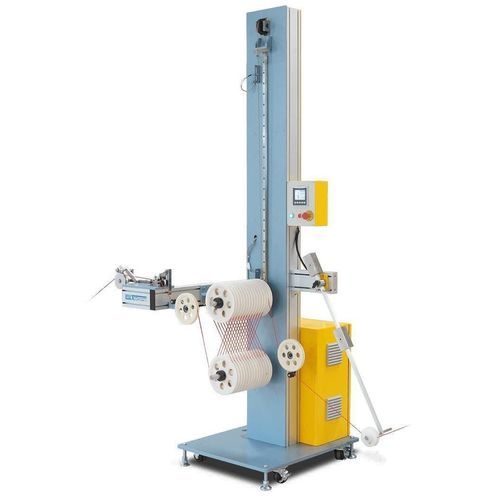

High-throughput extrusion line

with water coolingfilamenttube

Overview
Designed for precise production of 3D printer filaments, this filament extrusion line integrates vacuum calibration and water cooling to deliver homogeneous, void-free filament. The system supports filament diameters from 1.75 mm to 3.00 mm and line speeds up to 100 m/min. Key components include a 4.0 m stainless steel vacuum sizing, cooling and calibration bath with water heater, a vacuum chamber with hinged Plexiglas lid and quick vacuum release valve, an internal calibration tube and vented strand suction units at the end of the cooling bath.

Technical data
Application: 3D printer filament production
Filament diameter range: 1.75 mm – 3.00 mm
Max. winding diameter: 350 mm
Max. winding width: 300 mm
Operating speed: up to 100 m/min (at core diameter 100 mm)
Motor drives: 2 x 0.25 kW
3-phase supply voltage: per customer specification
Max pulling force per winding station: approx. 50 kg

Features

• Vacuum calibration achieving strand diameter precision of +/- 0.025 mm
• Produces exact filament diameters between 1.75 mm and 3.00 mm
• Line speeds up to 100 m/min for high throughput production
• 4.0 m stainless steel vacuum sizing, cooling and calibration bath with integrated water heater
• Vacuum section with hinged Plexiglas lid and quick vacuum release valve for maintenance access
• Internal calibration tube within the vacuum chamber for dimensional stability
• Vented strand suction units at the cooling bath outlet to ensure homogeneous, void-free filament

Technical specifications

• Max. winding diameter: 350 mm
• Max. winding width: 300 mm
• Operating speed: 100 m/min (at core diameter 100 mm)
• Motor drives: 2 x 0.25 kW
• 3-phase supply voltage: according to customer specifications
• Max pulling force on each wind up station: around 50 kg
• Filament diameter range: 1.75 mm – 3.00 mm
• Strand diameter precision: +/- 0.025 mm
• Vacuum sizing/cooling tank with water heater; 4.0 m calibration bath

Additional characteristics

• Product type: tube, filament
• Cooling: water-cooled vacuum calibration bath
• Throughput: suitable for high-throughput filament production
• Robust stainless steel vacuum bath length: 4.0 m
• Designed for integration with customer electrical specifications and winding stations
