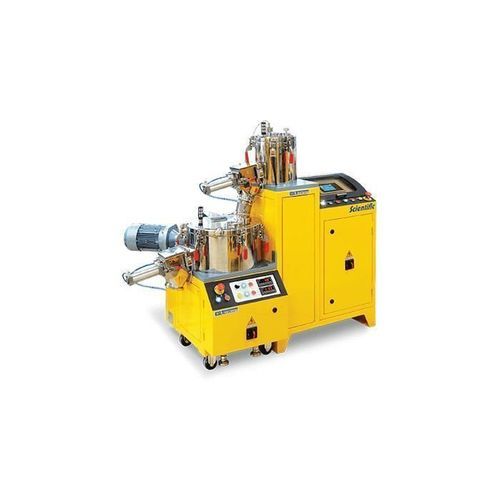

Rotary laboratory stirrer LMX series

mechanicaldigitalfor liquids

Product overview
Jacketed, high-speed laboratory and pilot-plant mixers for fluid formulations. Laboratory models include the LMX5 (5 L) and LMX10 (7.3 L) in high polished stainless steel; pilot-plant versions are available in 25 L and 75 L capacities. Units feature infinitely variable impeller speeds, automatic mixing cycles and an optional water-cooled impeller. An optional computer version with colour LCD touch-screen and Labtech software enables simple operation and printing of graphical and parameter logs via PC.

Key features

• High polished stainless steel construction
• Jacketed design for temperature control
• Variable-speed, high-speed fluid mixing
• Infinitely variable impeller speeds (500–4,000 rpm)
• Automatic mixing cycles
• Optional water cooling of the impeller
• Computer version with colour LCD touch screen and Labtech software; PC printing of graphs and runtime data

Technical table
Jacketed high-speed laboratory mixers | LMX5 | LMX10
Mixer bowl volume (liter) | 5 | 7.3
Impeller Speed (rpm) | 500-4,000 | 500-4,000
Motor power (kW) | 4 | 4

Technical specifications

• Models / Series: LMX series (examples shown: LMX5, LMX10)
• Mixer bowl volume: LMX5 = 5 L; LMX10 = 7.3 L
• Impeller speed range: 500–4,000 rpm (infinitely variable)
• Motor power: 4 kW (both LMX5 and LMX10)
• Construction: high polished stainless steel
• Available pilot-plant capacities: 25 L and 75 L
• Options: automatic mixing cycles; optional water-cooled impeller
• Control: optional computer version with colour LCD touch-screen and Labtech software for graphical and parameter logs and PC printing
• Applications: bench-top laboratory processing and pilot-plant formulation of liquids
