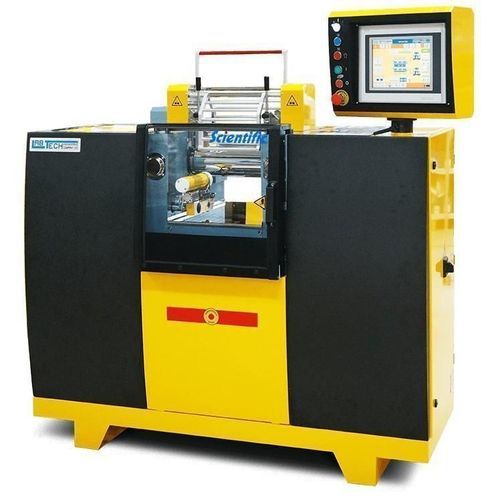

Double-roller mill LRM-SCR series

automaticvariable speedwith mixer

Product overview
Available from manual to fully automatic computerized mills with hands-free operation. Designed for formulation development, quality control and research laboratories in the pharmaceutical sector. Options include automatic batch mixing and individual variable-speed drives for each roll.

Specification table

• Models: LRM-SCR-110 | LRM-SCR-150 | LRM-SCR-200
• Roll diameters (mm): 110 | 150 | 200
• Roll widths (mm): 280 | 400 | 450
• Working widths (mm, others on request): 220 | 320 | 370
• Approx. capacity at compound density 1.0 (g): 100–150 | 200–400 | 500–1000
• Nip-gap adjustment (mm): 0.1 to 5.0 (all models)
• Individual variable-speed drive per roll, front/rear (rpm): 0–50 | 0–40 | 0–30

Applications

• Formulation development and compounding
• Quality control and batch testing
• Research and development laboratories
• Configurations from manual to fully automatic computerized mills with automatic batch mixing

Technical specifications

• Series: LRM-SCR (models: LRM-SCR-110, LRM-SCR-150, LRM-SCR-200)
• Roll diameters (mm): LRM-SCR-110 = 110; LRM-SCR-150 = 150; LRM-SCR-200 = 200
• Roll widths (mm): LRM-SCR-110 = 280; LRM-SCR-150 = 400; LRM-SCR-200 = 450
• Working widths (mm, others on request): 220 | 320 | 370
• Approx. batch capacity at density 1.0 (g): 100–150 | 200–400 | 500–1000
• Nip-gap distance adjustment (mm, others on request): 0.1–5.0 (all models)
• Individual variable speed drives for each roll, front/rear (rpm): 0–50 | 0–40 | 0–30
• Configurations: manual to fully automatic computerized mills with automatic mixing of the batch
• Technology: double-roller
• Other characteristics: automatic, variable speed, with mixer
• Sector: for the pharmaceutical industry
• Rotational speed (generic values shown): Min.: 0 rpm; Max.: 50 rpm

Characteristics / technical specifications

• Series: LRM-SCR
• Models: LRM-SCR-110, LRM-SCR-150, LRM-SCR-200
• Roll diameters (mm): 110 / 150 / 200
• Roll widths (mm): 280 / 400 / 450
• Working widths (mm): 220 / 320 / 370 (others on request)
• Approx. batch capacity at density 1.0 (g): 100–150 / 200–400 / 500–1000
• Nip-gap adjustment (mm): 0.1–5.0
• Individual variable-speed drives per roll (rpm): 0–50 / 0–40 / 0–30 (model dependent)
• Configurations: manual to fully automatic computerized with automatic batch mixing
• Intended sectors: formulation development, quality control, R&D; suitable for pharmaceutical use
