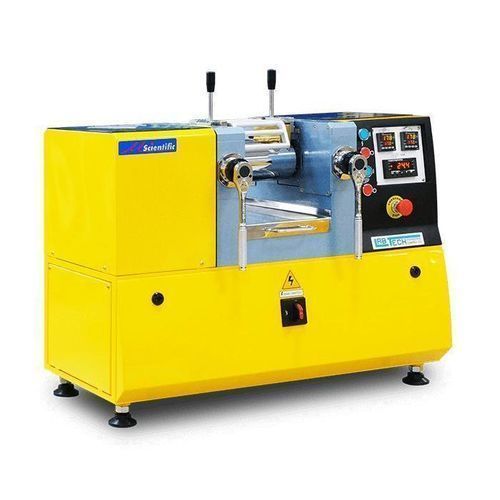

Laboratory calender machine LRM-M-100

Product description
Micro Scientific bench-top two-roll mill LRM-M-100 is designed for educational institutions and laboratories requiring precise small-batch polymer processing and reproducible sample preparation. The unit features independent variable-speed drives for each roll and a fine nip-gap adjustment (0.2–20 mm) to control shear and thickness during mixing and testing. Its compact footprint and 1 kW motor make it suitable for routine laboratory evaluation and materials development.

Application / Category
Polymer evaluation, R&D, laboratory testing, quality control, materials development.

Technical table
Bench-top mill | LRM-M-100
Roll diameters (mm) | 100
Roll widths (mm) | 210
Working widths (mm) | 150
Nip-gap distance adjustment (mm) | 0.2 to 20
Individual variable speed drive (Front/Rear) (rpm) | 2-25
Motor power (kW) | 1
Mill size (W x D x H) (cm) | 89 x 67 x 50

Technical specifications

• Model: LRM-M-100
• Roll diameter: 100 mm
• Roll width: 210 mm
• Working width: 150 mm
• Nip-gap adjustment range: 0.2–20 mm
• Independent variable-speed drive per roll (Front/Rear): 2–25 rpm
• Motor power: 1 kW
• Overall dimensions (W x D x H): 89 x 67 x 50 cm
