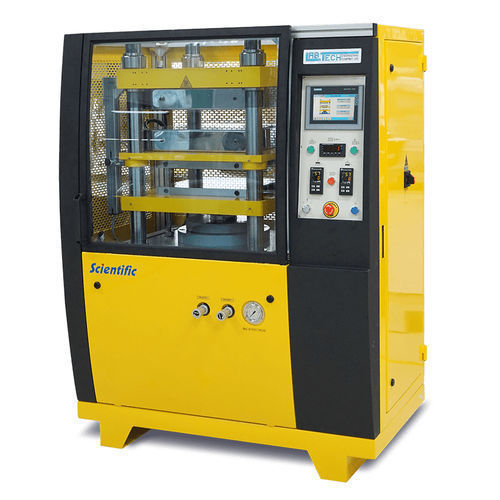

Hydraulic press LP-S series

compressionlaboratorydouble

Overview
Modern steel cabinet with a curved sliding front door and large Plexiglas viewing window. The control cabinet is recessed and covered by the front door when opened. Laboratory hydraulic presses with platen closing force from 20 to 80 MT. Standard configuration includes a double set of heating and cooling platens. Optional fully automatic platen-insert cooling system and a variety of platen sizes and control options are available.

Models and technical table

• Hydraulic Press Standard: LP-S-20 | LP-S-30 | LP-S-50
• Max platen pressure (MT): 20 | 30 | 50
• Press platen size (mm): 200 x 200 (LP-S-20) | 300 x 300 (LP-S-30, LP-S-50); other sizes on request
• Daylight (max opening, mm): 150 (LP-S-20, LP-S-30) | 180 (LP-S-50); other values on request
• Platen heating power (kW): 2 x 4 (LP-S-20) | 2 x 6 (LP-S-30, LP-S-50)
• Hydraulic motor power (kW): 2.2 (LP-S-20, LP-S-30) | 4.0 (LP-S-50)
• Max temperature (°C): 300 (all shown models); other values on request

Characteristics / technical specifications

• Series: LP-S series (models LP-S-20, LP-S-30, LP-S-50)
• Platen closing force range: 20 MT to 80 MT (models shown: 20, 30, 50 MT)
• Operation: hydraulic; Function: compression
• Structure: double, with heating plates (hot-platen)
• Standard: double set of heating and cooling platens
• Optional: fully automatic platen-insert cooling system
• Controls: fully automatic, PLC-controlled
• Cooling options: hot, cold, water-cooled
• Platen dimensions: width 200 / 300 mm; length 200 / 300 mm (other sizes on request)
• Opening (daylight): 150 mm, 180 mm (other values on request)
• Hydraulic pump power: 2.2 kW, 4 kW
• Force: Min.: 20 tf; Max.: 80 tf

Applications and options

• Intended for laboratory compression tests, material R&D and small-series production
• Suitable for materials testing, molding, lamination and process development
• Customizable platen sizes, heating power and control interfaces
• Available options: additional platen sizes, advanced PLC packages, automated platen cooling
