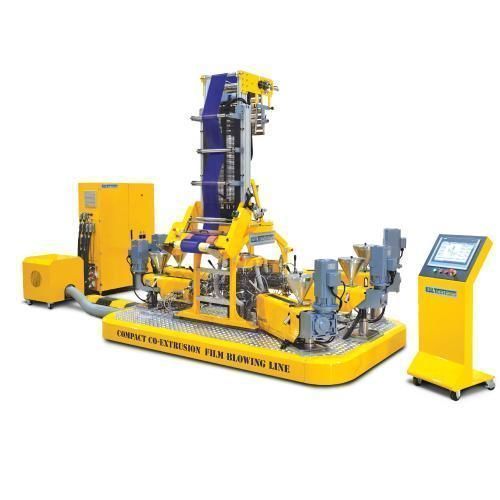

Compact coextrusion line LCF-400 CO-EX

5-layersblown filmplastic film

Description
The LCF-400 CO-EX is a compact 5-layer co-extrusion blown film line designed as a cost-effective alternative to standard co-ex lines. The line comprises five modular lowboy extruders feeding a five-layer pancake-type film blowing die. The die assembly includes a stabilizer cage with Teflon rolls, a polished wood collapsing frame, hard-chromed and rubber haul-off rolls, rubber pull rolls and a surface winder mounted above the die on a 360-degree oscillating tower frame.

Features

• 5 modular lowboy-type extruders
• Five-layer pancake-type film blowing die
• Stabilizer cage with Teflon rolls
• Polished wood collapsing frame
• Hard-chromed and rubber haul-off rolls
• Rubber pull rolls
• Surface winder mounted over die assembly
• 360-degree oscillating tower frame

Characteristics

• Other characteristics: 5-layers, compact
• Type: blown film
• Treated material: plastic film
• Applications: for films and bags

Technical specifications

• Model: LCF-400 CO-EX
• Max film lay-flat width: 350 mm
• Max line speeds: Haul-off tower nip rolls 35 m/min; Surface winder 40 m/min
• Standard film die diameter: 30 mm (film diameter 115 mm)
• Roll width: 400 mm
• Height from die to nip rolls: 1,200–2,200 mm
• Total electric consumption (5 layers): 15.3 kW
