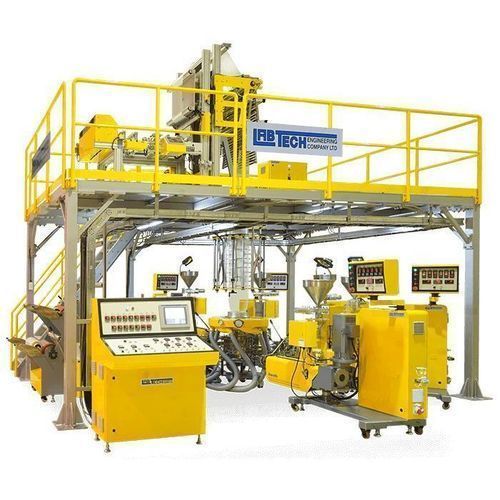

Multilayer coextrusion line LF series

11-layerblown filmplastic film

Description
Multilayer co-extrusion blown film lines for industrial film production, available in 2 to 11 layers. Models include LF-250, LF-400, LF-600, LF-700, LF-800 and LF-1000. Extruder screw diameters range from 12.5 mm (conical) up to 60 mm. Pancake-type dies developed with Compuplast consultant John Perdikulas ensure precise layer distribution. Lines produce large lay-flat widths and can be equipped with optional modules for process control, cooling and winding.

Key features

• Layer range: 2 to 11 layers
• Extruder sizes: 12.5 mm (conical) to 60 mm
• Pancake-type die design (Compuplast consultant)
• Optional duplex high-efficiency air cooling ring
• Oscillating nip-roll for uniform roll formation
• Control options: digital panels to full computerization
• Single- or multi-station wind-ups
• Computerized gravimetric hopper feeding for precise layer ratio control
• Tower options with motorized height adjustment (model dependent)

Technical specifications

• LF-250 — Nip-roll width: 250 mm; Max lay-flat width: 200 mm; Film speed (wind-up): 0–15 m/min; Tower height: 2,500–3,500 mm; Die-to-nip-roll (3-layer die): 820–1,820 mm; Nip-roll haul-off power: 0.18 kW
• LF-400 — Nip-roll width: 400 mm; Max lay-flat width: 350 mm; Film speed (wind-up): 0–35 (0–40) m/min; Tower height: 2,500–3,500 mm; Die-to-nip-roll (3-layer die): 1,450–2,450 mm; Nip-roll haul-off power: 0.75 kW
• LF-600 — Nip-roll width: 600 mm; Max lay-flat width: 550 mm; Film speed (wind-up): 0–35 (0–40) m/min; Tower height: 3,200–4,200 mm; Die-to-nip-roll (3-layer die): 1,950–2,950 mm; Nip-roll haul-off power: 1.5 kW
• LF-700 — Nip-roll width: 700 mm; Max lay-flat width: 650 mm; Film speed (wind-up): 0–35 (0–40) m/min; Tower height (platform): 4,200–5,200 mm; Die-to-nip-roll (3-layer die, platform): 3,200–4,200 mm; Nip-roll haul-off power: 1.5 kW
• LF-800 — Nip-roll width: 800 mm; Max lay-flat width: 750 mm; Film speed (wind-up): 0–35 (0–40) m/min; Tower height (platform): 4,200–5,200 mm; Die-to-nip-roll (3-layer die, platform): 3,200–4,200 mm; Nip-roll haul-off power: 1.5 kW
• LF-1000 — Nip-roll width: 1000 mm; Max lay-flat width: 950 mm; Film speed (wind-up): 0–35 (0–40) m/min; Tower height (platform): 4,200–5,200 mm; Die-to-nip-roll (3-layer die, platform): 3,200–4,200 mm; Nip-roll haul-off power: 1.5 kW

Technical characteristics

• Other characteristics: multilayer, up to 11 layers
• Type: blown film
• Processed material: plastic film
• Applications: films and bags manufacturing
