3-layers extrusion line LMF-200 CO-EX

multilayerlaboratory5-layers

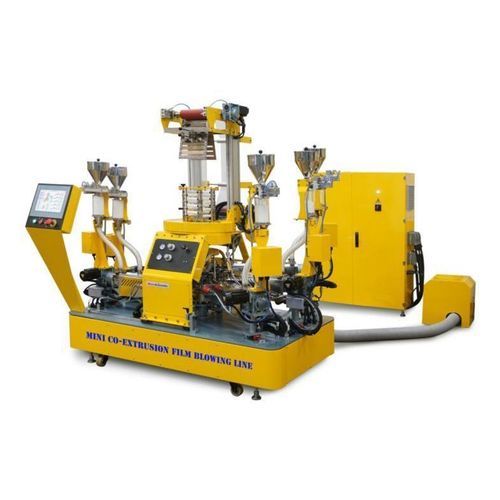

Our Mini Scientific Co-Ex Film Blowing Line is the latest new development designed for a very practical, economic, and compact line suitable for developing new multi-layer film compositions. It can also be used to evaluate additives like colorants, fillers, and film performance inhibitors. The line is available in 3 layers, 3 extruders version as well as 5 layers, 5 extruders version. With its compact design, it can easily be fitted in most laboratories. This new line is possibly very timely given the bans on plastic bags all over the world. At a very reasonable cost, the customers can now have a laboratory line to develop new multilayer films for other applications. - Max Film Lay-flat Width: 180 mm - Haul-Off Nip-Roll Speed: 0 to 15 m/min - Wind-Up Speed: 0 to 15 m/min - Standard Film Die Diameter: 40 mm (giving a film diameter of 115 mm) - Standard Cooling Ring for Die Diameter: 20 to 40 mm - Nip Roll Width: 200 mm - Height from Die to Nip-Roll: 1,000 mm - Total Height of Film Tower: 2,010 mm - Total Electric Consumption for 5 Layers: 23.7 kW
