unmanaged ethernet switch / 5 ports / DIN rail / wall-mount
LNX-C500-T

Add to MyDirectIndustry favorites
Compare this product
unmanaged ethernet switch / 5 ports / DIN rail / wall-mount unmanaged ethernet switch / 5 ports / DIN rail / wall-mount - LNX-C500-T
{{requestButtons}}

Characteristics

  • Type:

    unmanaged

  • Number of ports:

    5 ports

  • Mounting:

    DIN rail, wall-mount

  • Other characteristics:

    redundant, RJ45, rugged, compact, IP30

  • Applications:

    industrial, for harsh environments

Description

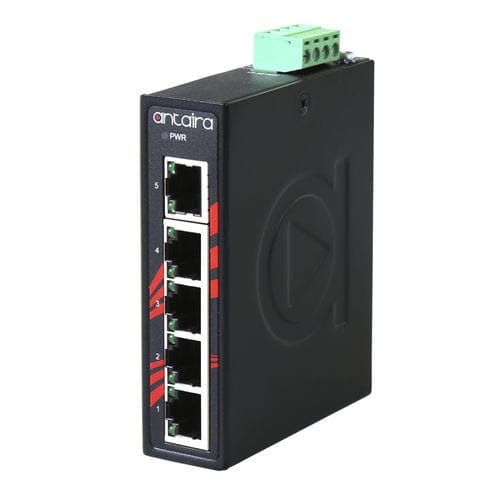

Antaira’s compact design LNX-C500-T industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The LNX-C500-T is equipped with 5*10/100Tx RJ45 Ethernet ports; with a backplane speed of 1gbps. The small form factor of this industrial switch is 30% smaller allowing for a more versatile implementation.

This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature from -40 to 75°C.

The LNX-C500-T is a perfect industrial networking product to support any application such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.Compact Industrial Grade Design
Supports 5*10/100Tx
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Extended Operating Temperature Range: -40° to 75° C
