IEEE 802.3at PoE injector INJ-C200G-bt-T
IEEE 802.3btIEEE 802.3afDIN rail

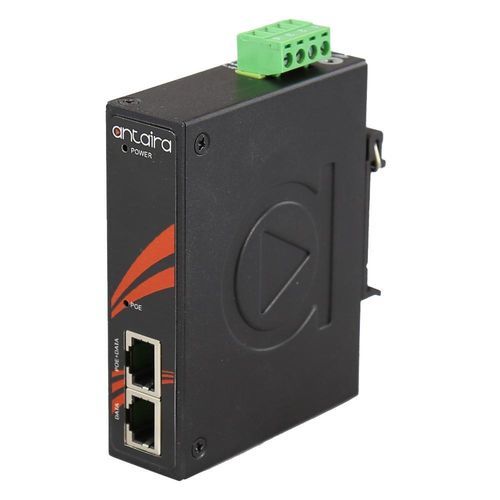

IEEE 802.3at PoE injector - INJ-C200G-bt-T - Antaira Technologies - IEEE 802.3bt / IEEE 802.3af / DIN rail
IEEE 802.3at PoE injector - INJ-C200G-bt-T - Antaira Technologies - IEEE 802.3bt / IEEE 802.3af / DIN rail
IEEE 802.3at PoE injector - INJ-C200G-bt-T - Antaira Technologies - IEEE 802.3bt / IEEE 802.3af / DIN rail - image - 2
IEEE 802.3at PoE injector - INJ-C200G-bt-T - Antaira Technologies - IEEE 802.3bt / IEEE 802.3af / DIN rail - image - 3
IEEE 802.3at PoE injector - INJ-C200G-bt-T - Antaira Technologies - IEEE 802.3bt / IEEE 802.3af / DIN rail - image - 4
IEEE 802.3at PoE injector - INJ-C200G-bt-T - Antaira Technologies - IEEE 802.3bt / IEEE 802.3af / DIN rail - image - 5
Add to favorites
Compare this product

Characteristics

Standard
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Mounting
DIN rail
Other characteristics
CE, IP30, FCC

Description

Overview
  • The Antaira INJ-C200G-bt-T is an industrial IEEE 802.3bt Type 4 (4PPoE) injector that supplies data plus up to 97 W of Power over Ethernet on a single Gigabit port while remaining backward compatible with IEEE 802.3af/at devices.
  • Designed for harsh environments with an IP30 metal enclosure, DIN-rail and wall mounting options, and extended operating temperature range.


Key features
  • 2 x 10/100/1000Tx ports with one 4PPoE port (up to 97 W)
  • IEEE 802.3bt (Type 4) compliant; backward compatible with IEEE 802.3af/at
  • Power input 53–57 VDC via removable terminal block with redundant inputs
  • DIN-rail and wall mountable; rugged metal IP30 housing
  • Operating temperature: -40°C to 75°C; RoHS, FCC and CE certifications
  • 5-year warranty


Included
  • INJ-C200G-bt-T unit
  • Quick Installation Guide
  • Wall mounting bracket set with screws
  • DC cable (18 AWG) and DC jack 5.5 x 2.1 mm


Technical specifications
  • Standards: IEEE 802.3 / 802.3u / 802.3ab; PoE: IEEE 802.3af/at/bt
  • Transfer rate: 14,880 pps (Ethernet); 148,800 pps (Fast Ethernet); 1,488,000 pps (Gigabit)
  • Ethernet ports: 2 x 10/100/1000 Base-T(X); PoE: 1 x 4PPoE (97 W/Port)
  • PoE pin assignment: V+ on pins 3,4,5,6; V- on pins 1,2,7,8
  • LED indicators: Power and PoE
  • Housing: Metal, IP30 protection; Dimensions (W x H x D): 26 x 95 x 75 mm; Weight: 0.60 lb (unit)
  • Input voltage: 53–57 VDC; removable terminal block; redundant inputs
  • Protections: overload and reverse polarity protection
  • System power consumption: 1 W; PoE power budget: 97 W
  • Environmental: Operating -40°C to 75°C; Storage -40°C to 100°C; Humidity 5%–95% non-condensing
  • EMI/EMS and environmental tests: FCC, CE, IEC standards for vibration, shock and free fall
  • Green: RoHS compliant; Warranty: 5 years
