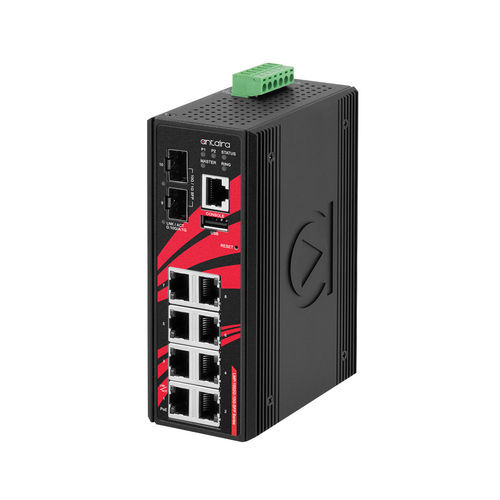

Managed switch LMP-1002G-10G-SFP-24

10 portslayer 2layer 3

Introduction
The LMP-1002G-10G-SFP-24 is an industrial-grade managed Ethernet switch with eight PoE+ 1G ports and two dual-rate 1G/10G SFP+ fiber uplink slots. Designed for edge-level connectivity in industrial networks, it provides Layer 2 management, wide operating temperature range and redundant power input support.

Key Highlights

• 10-port industrial PoE+ Light Layer 3 managed Ethernet switch
• 8 x 10/100/1000Tx PoE ports (up to 30 W per port)
• 2 x 1G/10G SFP+ slots for high-bandwidth fiber uplinks
• Power input 12–55 VDC with redundant input and reverse polarity protection
• Compact IP30 metal housing with DIN-rail and optional wall-mounting

Features

• IEEE 802.3af/at PoE support (30 W per port)
• Dual-rate SFP+ slots supporting 1G and 10G fiber modules
• Network redundancy: STP / RSTP / MSTP and G.8032 ERPS (<50 ms recovery)
• IPv4/IPv6 support, DHCP Option 66/67/82 and Modbus/TCP for device management
• IGMP v1/v2/v3 and IEEE 802.1Q VLAN for traffic segmentation
• Comprehensive management: HTTP/HTTPS, CLI/Telnet/SSH, SNMP v1/v2c/v3
• High immunity: EFT/ESD protection and industrial EMI/EMS compliance
• Operating temperature range -40 °C to 60 °C for harsh environments
• Max. PoE power budgets: 90 W @12 VDC, 180 W @24 VDC, 240 W @48–55 VDC
• 5-year warranty

Package Content

• 1 × LMP-1002G-10G-SFP-24 unit
• 1 × Quick Installation Guide
• 1 × Wall mounting bracket set with screws
• 1 × DC cable (18 AWG) & DC jack 5.5 × 2.1 mm
• 1 × RJ45 dust cover set
• 1 × RJ45 to DB9 serial console cable

Downloads (documents available)

• Datasheet
• Hardware Manual
• Software Manual V6.1
• Quick Installation Guide

Technical specifications

• Standards: IEEE 802.3/802.3u/802.3ab/802.3z/802.3ae, IEEE 802.3af/at, IEEE 802.1Q/802.1p/802.1X, LLDP, LACP, ITU-T G.8032
• Processing: Store-and-forward switching
• Protocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, DHCP Option 66/67/82, Modbus/TCP, HTTP/HTTPS, SSH, RMON
• VLAN groups: up to 4095; IGMP groups: up to 1024
• MAC table: 16K entries; Jumbo frame up to 9.6 KB; Memory buffer 8 Mbits
• Performance: Transfer rates up to 14,880,000 pps (10G)
• Switching fabric: 56 Gbps
• Ethernet ports: 8 × 10/100/1000 BASE-T; Fiber: 2 × 1G/10G SFP+
• PoE: 8 ports, 30 W per port; End-span Mode A pinout
• LEDs: Power1/Power2/Master/Ring/Status, port speed/link/activity, PoE, SFP
• Mechanical: IP30 metal housing; DIN-rail and wall mount; Dimensions 54 × 142 × 99 mm; Weight 2.58 lbs
• Power: Removable 6-contact terminal block; Input 12–55 VDC; relay output 24 VDC/1 A; overload and reverse polarity protection
• Environmental: Operating -40 °C to 60 °C; Storage -40 °C to 85 °C; Humidity 5%–95% non-condensing
• Certifications: FCC, CE, UL 61010; EMI/EMS standards as per industrial requirements
• Reliability: MTBF 341,855 hrs; Shock/Vibration/Free-fall per IEC60068 series
• Environmental compliance: RoHS
• Warranty: 5 years
