IEEE 802.3at PoE injector INJ-0200G-60-24-T

IEEE 802.3btIEEE 802.3afDIN rail

Overview

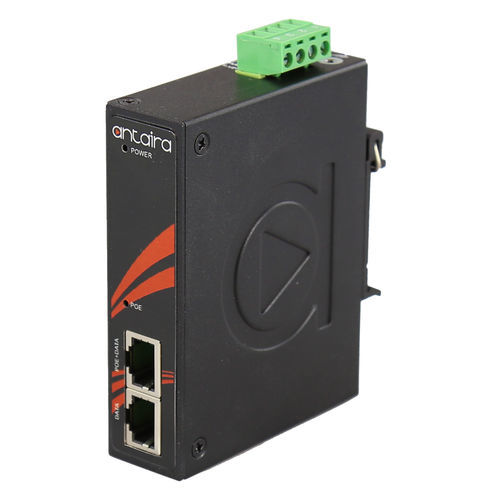

The Antaira INJ-0200G-60-24-T is an industrial high-power IEEE 802.3bt (Type 3) 4PPoE Gigabit injector that delivers data and up to 60 W of power per PoE port. It features an IP30 metal housing, DIN-rail or wall mounting options and an extended operating temperature range for harsh industrial environments.

Key features

• 10/100/1000 PoE injector supporting 4-pair PoE (4PPoE)
• IEEE 802.3af/at/bt compatible — up to 60 W per PoE port
• Wide input support (9–48 VDC); supports 12–24 VDC for 30 W and 24–48 VDC for 60 W output
• Data and power over a single Ethernet cable (PoE)
• Wide operating temperature: -40°C to 75°C
• DIN-rail or wall mountable, compact metal IP30 housing
• 5-year warranty

Technical specifications

• Standards: IEEE 802.3/802.3u/802.3ab; IEEE 802.3af/at/bt PoE
• Transfer rate: 14,880pps (Ethernet); 148,800pps (Fast Ethernet); 1,488,000pps (Gigabit)
• Ethernet ports: 2 × 10/100/1000BaseT(X) (1 × Data IN, 1 × PoE OUT)
• LED indicators: Power and PoE
• Housing: Metal, IP30
• Dimensions (W × H × D): 26 × 95 × 75 mm
• Weight: Unit 0.60 lbs; Shipping 1.0 lbs
• Mounting: DIN-rail or wall
• Input voltage: 9–48 VDC; power connection via 4-pin terminal block
• Protection: Reverse polarity and overload current protection
• Power consumption: 5 W (system)
• PoE output: 60 W max. per PoE port — Max PoE budget 60 W
• Operating temperature: -40°C to 75°C; Storage: -40°C to 85°C
• Humidity: 5%–95% non-condensing
• EMI / Immunity: CE, FCC Class A; EN61000-6-4, EN61000-6-2; EN61000-4-2/3/4/5/6/8
• Mechanical tests: IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration)
• RoHS compliant; Certifications: FCC, CE
• PoE pin assignment: V+ on pins 3,4,5,6; V- on pins 1,2,7,8

Included

• INJ-0200G-60-24-T unit
• Wall mounting bracket set with screws
• Quick Installation Guide

Applications

• Industrial Ethernet networks, remote IoT devices, surveillance cameras, wireless access points and field equipment requiring up to 60 W per port
• Suitable for control cabinets, transportation, utility and outdoor enclosures (with appropriate external protection)

Compliance & warranty

• Meets relevant EMI/EMC and environmental standards (see specifications)
• RoHS compliant; FCC and CE certified
• 5-year manufacturer warranty
