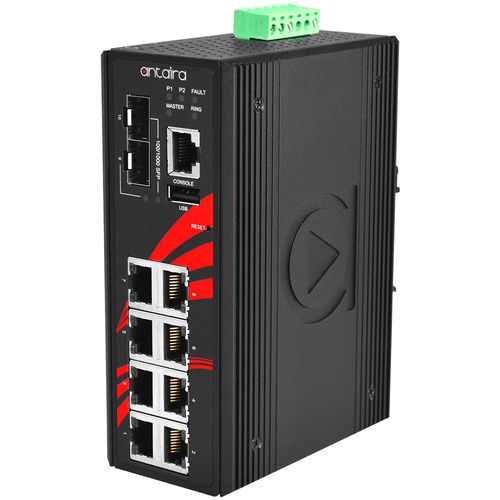

Managed switch LMP-1002G-SFP-T

10 ports8 portslayer 2

Introduction
Antaira LMP-1002G-SFP-T is a 10-port industrial Gigabit PoE+ managed Ethernet switch with 8 x 10/100/1000Tx ports (IEEE 802.3at/af, up to 30W per port) and 2 x 100/1000 dual-rate SFP slots for fiber uplinks. It is a Layer 2 managed switch with a web-based management console and supports advanced network functions for industrial control and SCADA environments.

Product overview
The unit is IP30-rated, DIN-rail mountable and operates over an extended temperature range (-40°C to 75°C). It provides high EFT/ESD protection, redundant 48–55 VDC inputs and is suitable for applications such as power/utilities, water/wastewater, oil & gas, factory automation, surveillance and intelligent transport systems.

Key features

• 8 x 10/100/1000BASE-T ports with IEEE 802.3af/at PoE (30W per port) and 2 x 100/1000 SFP slots
• Network redundancy: RSTP/MSTP and ITU-T G.8032 ERPS (recovery time <50ms)
• Management: Web console, CLI, Telnet, SNMP v1/v2c/v3
• IGMP v1/v2/v3 snooping (up to 1024 groups), IEEE 802.1Q VLAN, QoS (IEEE 802.1p), CoS/ToS
• Security and reliability: 802.1X, HTTPS, SSH/SSL, port lock, RMON, Modbus/TCP
• PoE management: per-port PoE with PoE Ping Alarm for power recycle and system alarm via e-mail
• Redundant power input, relay alarm output, overload and reverse-polarity protection

Package content

• 1 x LMP-1002G-SFP-T
• 2 x Wall mounting brackets with screws
• 1 x RJ45-to-DB9 serial console cable
• 1 x DC cable (18 AWG) with 5.5 x 2.1 mm DC jack

Downloads (titles only)

• Datasheet
• Hardware Manual
• Software Manual V6.2
• Quick Installation Guide

Optional accessories

• CBF-LC01LC-MD — LC–LC 1 m multimode duplex fiber
• DIN-RACK-2U — DIN-rail to 19" rack mount adapter (2U)
• DRP-240-48 — 240W industrial DIN-rail power supply, 48 VDC / 5.0 A
• MDR-60-48 — 60W slim DIN-rail power supply, 48 VDC / 1.25 A
• PA-60-48-US — Power adapter (100–240 VAC input, 48 VDC/1.25 A) US plug
• SFP-M-T — 1G SFP multimode 550 m / LC / 850 nm, -40°C–85°C
• SFP-S10-T — 1G SFP single-mode 10 km / LC / 1310 nm, -40°C–85°C

Technical specifications

• Model: LMP-1002G-SFP-T
• Ethernet ports: 8 x 10/100/1000BASE-T (PoE capable)
• PoE: IEEE 802.3af/at, 8 ports, up to 30W per port
• Fiber ports: 2 x 100/1000BASE-(F)X SFP dual-rate slots
• Switching capacity: 20 Gbps
• MAC table: 8K entries; Jumbo frame up to 9.6 KB; Memory buffer 4 Mbits
• VLAN: 1–4094; IGMP groups: up to 1024
• Redundancy/protocols: STP/RSTP/MSTP, LACP, ERPS v1/v2 (<50ms), IGMP, SNMP, Modbus/TCP, IPv4/IPv6
• Processing: Store-and-forward; Flow control: IEEE 802.3x
• Housing: Metal, IP30; Mounting: DIN-rail (standard), wall mount
• Dimensions (W×H×D): 54 × 142 × 99 mm; Unit weight: 2.5 lbs
• Power input: Removable 6-contact terminal, 48–55 VDC, redundant
• System power (device only): 15 W (excluding PoE load)
• Relay output: 24 V DC, 1 A; Protections: overload, reverse polarity
• Operating temperature: -40°C to 75°C; Storage: -40°C to 85°C; Humidity: 5%–95% non-condensing
• Certifications: FCC, CE, UL 60950-1, UL 61010 series, ISA 12.12.01 (UL C1D2), ATEX, NEMA TS2
• EMI/EMS: EN 55032/55024, IEC61000 series; Environmental tests: IEC60068 series
• Compliance: RoHS; Warranty: 5 years
