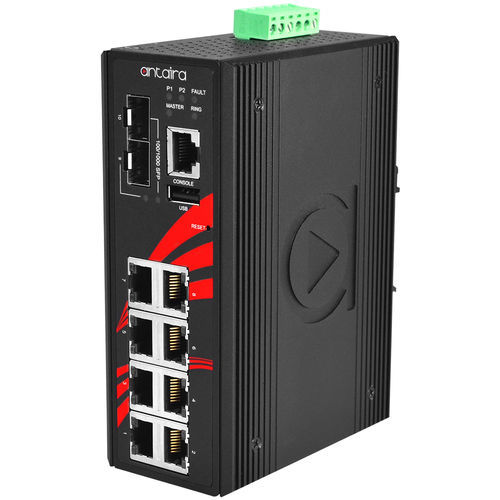

Managed switch LMP-1002G-SFP-24

10 portslayer 2gigabit Ethernet

Introduction
Antaira LMP-1002G-SFP-24 is a 10-port industrial Gigabit PoE+ managed Layer 2 Ethernet switch offering 8 x 10/100/1000Tx PoE+ ports (IEEE 802.3at/af, up to 30 W per port) and 2 x 100/1000 dual-rate SFP slots for fiber uplinks. It provides web, CLI and SNMP management and is designed for industrial control, surveillance and mobile PoE deployments.

General
Metal housing with IP30 protection; DIN-rail and optional wall mounting. Operating temperature -10°C to 70°C. Dual-redundant DC input 12–55 VDC with built-in voltage booster to supply full 48 VDC PoE in low-voltage environments. High EFT/ESD protection and relay alarm output for industrial sites.

Features

• 8 x 10/100/1000Tx PoE+ ports (IEEE 802.3at/af), up to 30 W per port
• 2 x 100/1000 dual-rate SFP slots for fiber uplinks
• Network redundancy: STP/RSTP/MSTP and ITU-T G.8032 ERPS (recovery <50 ms)
• Management: Web Console, CLI, Telnet, SNMP v1/v2c/v3
• Advanced networking: IEEE 802.1Q VLAN, IGMP v1/v2/v3 (up to 1024 groups), QoS (IEEE 802.1p), LACP
• Security and protocols: 802.1X, HTTPS, SSH/SSL, Modbus TCP, RMON, DHCP Option support
• PoE Ping Alarm for port power recycle and system warning via e-mail
• Metal IP30 housing with DIN-rail and wall-mount options
• Standard operating temperature -10°C to 70°C; 5-year warranty

Package Content

• 1 x LMP-1002G-SFP-24
• 1 x RJ45 to DB9 serial console cable
• 1 x DC cable (18 AWG) with DC jack 5.5 x 2.1 mm
• 2 x Wall mounting brackets and screws

Optional Accessories

• CBF-LC01LC-MD — LC to LC 1 m Multi-Mode Duplex fiber cable
• DIN-RACK-2U — DIN-rail to 19" rack mount adapter, 2U
• MDR-60-24 — 60 W / 24 VDC / 2.5 A industrial DIN-rail power supply
• SFP-M — 1 Gb SFP transceiver, Multi-Mode 550 m / LC / 850 nm
• SFP-S10 — 1 Gb SFP transceiver, Single-Mode 10 km / LC / 1310 nm

Downloads

• Datasheet (series datasheet PDF)
• Hardware manual (series hardware manual PDF)
• Software manual V6.2 (software manual PDF covering 5–26 port devices)

Technical specifications

• Standards: IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.3af/at, 802.1d/w/s, 802.1Q, 802.1X, ITU-T G.8032
• Switching: Store-and-forward, switching fabric 20 Gbps, MAC table 8K, jumbo frame up to 9.6 KB
• Interfaces: 8 × 10/100/1000 BASE-T (PoE+), 2 × 100/1000 SFP
• VLAN: 1–4094 groups; IGMP: up to 1024 groups
• Management & protocols: Web, CLI, Telnet, SNMP v1/v2c/v3, DHCP, SNTP, Syslog, SSH/SSL, HTTPS, Modbus/TCP, LLDP
• Power: Removable 6-contact terminal block; input 12–55 VDC (redundant) with internal booster; system power consumption ~15 W (non-PoE)
• Protection: EFT/ESD, overload and reverse polarity protection; relay output 24 V DC, 1 A
• Mechanical: Metal IP30 housing; DIN-rail; dimensions 54 × 142 × 99 mm; unit weight 2.5 lb (shipping 3.3 lb)
• Environmental: Operating -10°C to 70°C; storage -40°C to 85°C; humidity 5%–95% non-condensing
• Certifications: FCC, CE, UL 60950-1, UL 61010 series, ISA 12.12.01 (UL C1D2), ATEX, NEMA TS2
• EMI/EMS: FCC Part 15 Class A; CE EN 55032/55024; IEC61000 series immunity and surge tests
• Compliance: RoHS; Stability testing per IEC60068 series
• Warranty: 5 years
