Unmanaged ethernet switch LNP-C501G-SFP-bt-24-T

5 portsgigabit Ethernetgigabit

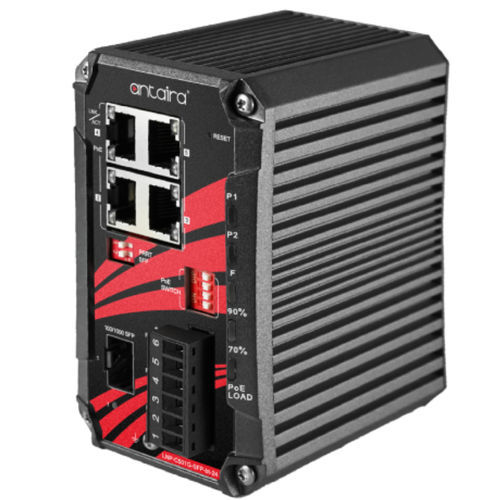

Product Overview Antaira Technologies’ LNP-C501G-SFP-bt-24-T is a 5-port industrial compact Gigabit PoE++ unmanaged Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3bt for a maximum of 90W/port, and 1*100/1000 dual rate SFP slot for fiber connection. The LNP-C501G-SFP-bt-24-T is IP40 rated and DIN-rail mountable. The operating temperature of this model is extended temperature ranges from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment. Features - Support 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*100/1000 SFP Slot - Support PD Remote Reset Technology (PRRT) - Adjustable SFP Speed with DIP-Switch Setting - Store-and-Forward Switching Architecture - Dual Power Input 9~55VDC in 6-Pin Terminal Block - Provided power booster technologies for low voltage power inputs - Support Power Inputs Reverse Polarity Protection - IP40 Protection - DIN-Rail or Wall Mountable - Operating Temperature: -40°C to 75°C - 5-Year Warranty Package Content - LNP-C501G-SFP-bt-24-T - Quick Installation Guide - Wall mounting bracket set with screws - DC cable - 18AWG & DC jack 5.5 x 2.1mm (Wire: White (+) / Black (-)) - Dust cover set Optional Accessories - CBF-LC01LC-MD: LC To LC 1 Meter Multi-Mode Duplex - DIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height - SFP-M-T: 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºC - SFP-S10-T: 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºC - CBF-ST01LC-MD: ST To LC 1 Meter Multi-Mode Duplex Cable - NDR-480-48: 480W Single Output Industrial Din-Rail Power Supply, 48VDC Output Technical Specifications Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000BaseT Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber, IEEE 802.3af/at/bt Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control Performance - MAC Table Size: 8K - Jumbo Frame: 10 Kbytes - Memory Buffer: 1 Mbit - Transfer Rate: 14,880pps for Ethernet, 148,800pps for Fast Ethernet, 1,488,000pps for Gigabit Ethernet - Switching Architecture: Back-Plane (Switching Fabric): 10Gbps Ethernet Interface - Ethernet Port Count: 5 ports - 10/100/1000 BASE-T(X): 5 ports - PoE Port: 4 ports (90W/port) - PoE Pin Assignment: V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8 Fiber Interface - Fiber Port Count: 1 port - 100/1000 BASE-(F)X SFP: 1 port Other Interface - DIP Switch: PoE Switch (Control PoE Function by Port), DIP Switch 1 (PD Remote Reset Technology (PRRT) Enable/Disable), DIP Switch 2 (SFP Speed (1000Mbps/100Mbps)) - LED Indicator: System (Power 1, Power 2, Fault), PoE Load (70%, 90%), Ethernet ports (Speed/Link/Active), PoE (On-connected to PD devices), SFP (Speed/Link/Active) Mechanical Characteristics - Housing: Metal, IP40 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 64.9 x 110 x 89.8 mm - Weight: Unit: 2.01 lb, Shipping: 2.55 lb Power Requirements - Power Connection: Removable 6-contact terminal block - Input Voltage: 9V–55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 4.6 Watts - Max. PoE Power Budget: 60W@9V, 90W@12V, 150W@24V, 240W@48~55V - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -40° to 75° C (-40° to 167° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE - UL 61010-1 / UL 61010-2-201: ✔ - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - Green: RoHs Compliant - Warranty: 5 years
